Image de 3D Printer 220x220x250mm

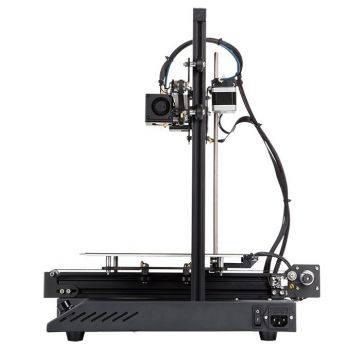

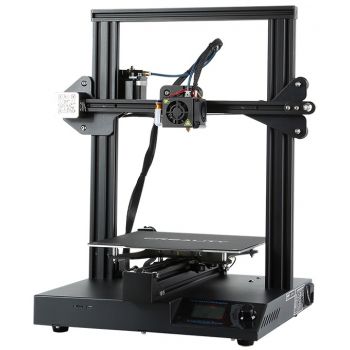

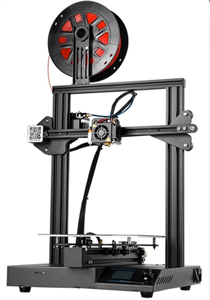

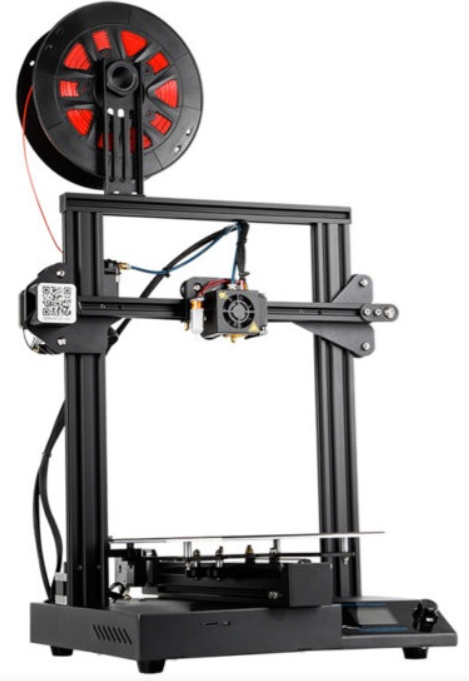

3D Printer 220x220x250mm

SKU: FS999492
Τhe main product features : Automatic matrix 3D printing bed leveling ensures a high level of operating comfort...
Reproduction is welcome and allowed for free circulation only.


Τhe main product features : Automatic matrix 3D printing bed leveling ensures a high level of operating comfort...

Τhe main product features of the FS999492 3D printer:

Automatic matrix 3D printing bed leveling ensures a high level of operating comfort
Quickly heat up the building platform – Quickly start your first 3D print
Easily resume your 3D prints after a power outage or filament change
Very high resolution and precession of your 3D prints
Cmagnetic sticker ensures optimum adhesion of your 3D prints to the building platform
Built-in filament sensor detects filament status
High quality power supply from MeanWell

Start your 3D printing process quickly thanks to fast heating of the building platform.

Quickly start your 3D printing process by heating up the building platform. The advanced power supply delivers enough power to rapidly heat the platform. So you'll wait less and start 3D printing faster.

Very high resolution and precession of your 3D prints.

The stable frame structure of the FS999492 allows you a high precession and resolution of your 3D prints. So you can create 3D prints with industrial quality at an affordable price.

Cmagnetic Sticker ensures optimal adhesion of your 3D prints to the building platform.

Your 3D print is ready. Great – all you have to do now is detach the 3D print from the building platform. Until now, this was often cumbersome and time-consuming. The FS999492 allows an easy removal of your objects after the 3D print finished, thanks to the Cmagnetic sticker and an optimal adhesion during the 3D print.

The resume function allows you to quickly resume your 3D prints after a power failure.

The resume function lets you quickly resume your 3D prints after a power outage. This saves you time, money and nerves.

NOTES

Assembly is required.
High ease of use thanks to automatic 3D print bed leveling.

Enjoy a high level of operating comfort thanks to automatic print bed leveling. The height of the building platform is simply adjusted by the 3D printer itself. This saves you having to adjust it manually.

Filament sensor detects the filament status (optional).

The filament sensor detects the filament status of your 3D printer. This causes your CR-20 PRO to pause 3D printing when the filament has run out. Add new filament and resume 3D printing.

SPECIFICATIONS
Extruder Compatibility:
FS999493 (MK8 Hotend)
3D Printer Category:
Affordable
Printing Technology: FFF (Fused Filament Fabrication)
Filament Diameter: 1.75mm
Layer Resolution: 100μm
Max. Print Speed: 100mm/sec
Precision: ±0.1mm
Extruder Quantity: Single
Nozzle Quantity: 1
Max Nozzle Temp.: 250℃
Heated Build Plate (Heated Bed): Yes
Max Bed Temp.: 110℃
Heated Bed Type: Magnetic
Leveling: Automatic
Build Volume X: 220mm
Build Volume Y: 220mm
Build Volume Z: 250mm
Power Supply: MeanWell
Supported Materials:
ABS
CARBON
FLEX
METAL
PET
PLA
WOOD
File Format:
G-Code
OBJ
STL
Working Mode :
Offline (SD Card/USB Stick)
Online (USB)
WiFi Connectivity: No
SPECIFICATIONS
Printer
Printing speed: ≤100mm/s, normal30-60mm/s
Nozzle diameter: Standard 0.4mm, can be in 0.2, 0.3mm
Software
Slice software: Cura/Repetier-host/Simplify3D
Support(OS): Windows/Mac/Linux
Power supply
Total power: 270W
Input:AC 100-120V/6.8A 200-240V/3.4A 50/60hz
Output:DC 24V

Advantage:

High quality extruder: Patented technology 1, MK-10 extrusion mechanism, avoids unnecessary clogging and poor spillage.
High quality structure: Patented technology 2, V-shaped pulleys, running more stable and smoothly with less noise and is more wear-resistant.
Enhanced 3D print stability: The 4040 profile and the Y-axis U-type passive block which use on the Y-axis, makes it 3D print more stable as well as the manufacturing quality is guaranteed.
Meanwell Power supply: made by the listed company with a history of over 30 years, mature technology ensure better user experience.
Simple leveling method: Bill Touch automatically leveling is added, 9-point leveling method to make leveling easier.
Imported guide tube: Imported blue teflon tube, ensure filament feed in more smoothly.
New platform sticker: Cmagnatic sticker is used on the platform, which replace the traditional textured paper and glue, easier to take out the model, with good adhesion, solving the problem of warping and more cost effective.
