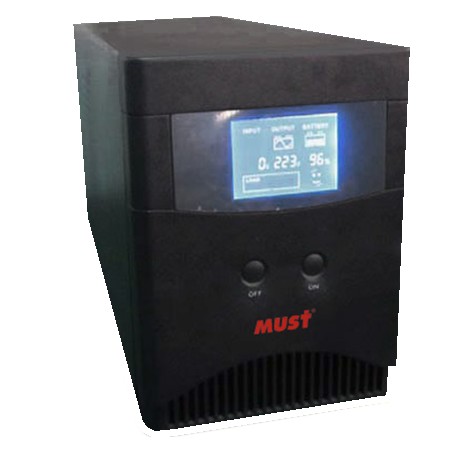

High quality and availablity of energy adapted to suit specific critical needs,covering a vast range of applications. Applied to conditioner, DVD, VCD air, computer, TV, washing machine, exhaust machine, refrigerator, video recorder, massage machine, electric fan, illumination and etc.
Extremely low return noise and no disturbance to talking quality.
Use-friendly interface, LED simulative display and computer screen display of inverter operation status.
RS232 port, smart power management software, automatic file saving and shutting down at power abnormalities.
Special charging system design for better protection of battery life.
Short circuit, overload, over voltage and low battery protection.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports)and can be used as UPS. Specification
| Model | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 300W;500W;600W; 800W;1000W | 300W;500W;600W; 800W;1000W | |
| Output Voltage | 120V | 220V | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:1 | ||
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz;47Hz ~ 55Hz for 50Hz nominal;56Hz ~ 65Hz for 60Hz nominal | ||
| Regulation (Nominal) | ±10% typical of nominal voltage | ||
| Regulation(Battery mode) | ±3% of selected output voltage | ||
| Transfer time | 5ms Typical | ||
| Over current protection | Over load alarm level 100% ~ 120%;Over load shutdown level 120% ~ 190% | ||
| INPUT | |||
| Nominal Voltage | 120V | 220V | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | >95% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Over current protection | 300W-600W:10A; 800W-1000W:15A | 10A | |
| Voltage Range | 75V ~ 155V | 145V ~ 280V | |
| AVR Range (2 Bucks, 2 Boosts) | Enhanced Buck: +28% of selected nominal voltage;Buck mode: +10% of selected nominal voltage;Boost mode: -10% of selected nominal voltage Enhanced Boost: -25% of selected nominal voltage | ||
| Surge Protection | 500VA / 1500VA:216 Joules 1500VA ~ 5000VA:324 Joules | 500VA / 1500VA:220 Joules 1500VA ~10000VA:440 Joules | |
| BATTERY | |||
| Battery type | Lead-Acid 7Ah~200Ah (Recommended) | Lead-Acid7Ah~200Ah (Recommended) | |
| DC Voltage | 300W/600W/800W 1000W:12Vdc/24Vdc | 300W/600W/800W 1000W:12Vdc 800W/1000W:24Vdc | |
| Typical backup time | No Limit | ||
| Charging method | Smart pulse charging with two charging modes:Quick charging when battery is not fully charged;trickle charging when battery is 90% fully charged. | ||
| Maximum charging current | 300W-1000W:15A | 300W-1000W:25A | |
| Average charging voltage for each battery | Quick charging mode:14V maximum. Trickle charging mode:13.5V | ||
| Protection | Over current protection & Over charging voltage protection (SCR control)Thermal protection (CPU control)When temperature inside the unit is over 50°C, charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate | ||
| Monitoring | Smart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days. | ||
| SOLAR CHARGER (OPTIONAL) | |||
| Rating voltage | 12V / 24V | 12V / 24V | |
| DC input range | 12V model:12 ~ 21Vdc; 24V model:24 ~ 42Vdc; | ||
| Charging method | Constant voltage with current limiting by PWM control | ||
| Charging voltage | 12V model:13.5Vdc; 24V model:27.0Vdc | ||
| Power rating | 12V model:500W (13.5Vdc @ 37A); 24V model:1000W (27.0Vdc @ 37A) | ||
| Protection | DC input polarity protection, DC input short circuit protection( when battery is connected), DC output over current protection | ||
| COMMUNICATION&MANAGEMENT | |||
| Standard Interface port | UPSilon2000 compatible; optional for RS232 . | ||
| Optional Interface part | RJ45 (Surge protection), DB9, | ||
| Control panel | LCD or LED Selectable | ||
| Audible alarm | Alarm on battery:Low battery & Battery over voltage Alarm on abnormal operation:Over load, Short-circuit, & Over heat | ||
| Cooling fan control | Auto on / off, controlled by temperature & operation mode | ||
| ENVIRONMENTAL & SAFETY | |||
| Operating Temperature | Up to 1500 meters:0°C to 40 °C (32 °F to 104 °F) | ||
| Transit/storage Temp. | -15 °C to 55 °C (5 °F to 131 °F) | ||
| Relative Humidity | 5 - 95% non condensing | ||
| Operating Altitude | 0 ~ 3000 meters | ||
| Quality control system | ISO 9001:2000, ISO 14002-2004 | ||
| PHYSICAL | |||
| Appearance | Size(mm) L x W x H | 312*262*118 | |
| Net Weight(Kg) | 300W:7.0kg ;500W: 9.0kgs; 600W : 10.5kg ; 800W :12.5kg;1000W:12.5KG | ||
| Carton BOX(mm)Lx WxH | 415*348*205(1 piece) | ||
| Gross Weight:(Kg) | 300W:7.5kg ; 500W: 8.3kgs; 600W :11.0kg ;800W :13.0kg;1000W:13.0KG | ||
