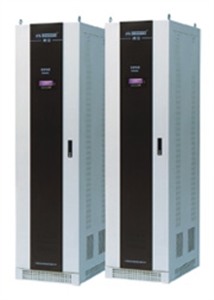

HBES P series variable frequency three-phase(power type)emergency power supply

SKU: FS00019581

Reproduction is welcome and allowed for free circulation only.

General(HBES/P series variable frequency three-phase(power type)emergency power supply)

a.Application: supply variable frequency three -phase emergency power supply for fire facilityonly having s ingle power supply or motor ofprimary load , to solve the problem of motorpower supply and reduce the impulse to power
device during starting. Example: water pump motor, fan motor or other
devices motors.
b.Specification range: 2.2KW-800KW
c.Detail specification: 2.2, 3.7, 5.5, 7.5, 11, 15,18.5, 22, 30, 37, 45, 55, 75, 93, 110, 132, 160,187, 200, 220, 250, 280, 315, 400, 500KW, etc.
d.Installation: floor type ( standard powerdistribution box)
Standby time: 120min, it also can be set accordingtodesign requirement.

Main technical parameters(HBES/P series variable frequency three-phase(power type)emergency power supply)

Model		HBES/P-2.2~500KW
Input	Voltage	380 ± 20%
	Phase no.	Three-phase four-wire +PE
	Frequency	50Hz ± 5%
Output	Capacity	2.2KW~500KW
	Voltage	0~380V (adjustable) three-phase four-wire +PE
	Waveform	PWM wave
	Frequency	0~50Hz (Start through inversion and run normally, frequency is adjustable)
	Overload capacity	60s for120%; 0.5s for 150%
Battery		Maintenance-free sealing battery
Switching time		Standard type: 120min (may be set according to design requirement)
Protection		Short circuit protection, over current protection, phase failure protection
Display		LED
Efficiency		Emergency power supply: above 95%;
Running environment		Temp.: -24 ~40 Relative humidity:0~90% Altitude: 2,000m below
Applicable load		Only for motor loads
Noise		Commercial power: no noise; emergency power supply: less than 60dB.
Size/weight		See the table of size/weight
The way of opening the door and incoming wire		Single open of front door, double-open of back door, inlet and outlet wire from bottom (for standard type)

Battery equipping and size/weight table(HBES/P series variable frequency three-phase(power type)emergency power supply)

No.	Model	Output power (KW)	Size of battery cabinet (mm)D×W×H	Battery cabinet(Pcs.)	Weight(kg)
1	HBES/P-2.2KW	2.2	-----	Battery in the main frame	160(Including battery)
2	HBES/P-3.7KW	3.7	-----	Battery in the main frame	340(Including battery)
3	HBES/P-5.5KW	5.5	-----	Battery in the main frame	700(Including battery)
4	HBES/P-7.5KW	7.5	-----	Battery in the main frame	800(Including battery)
5	HBES/P-11KW	11	-----	Battery in the main frame	950(Including battery)
6	HBES/P-15KW	15	800×600×2200	1Pcs.	1280(Including battery)
7	HBES/P-18.5KW	18.5	800×600×2200	1Pcs.	1300(Including battery)
8	HBES/P-22KW	22	800×600×2200	1Pcs.	1740(Including battery)
9	HBES/P-30KW	30	800×600×2200	1Pcs.	1800(Including battery )
10	HBES/P-37KW	37	800×600×2200	2Pcs.	2420(Including battery )
11	HBES/P-45KW	45	800×600×2200	2Pcs.	3350(Including battery )
12	HBES/P-55KW	55	800×600×2200	2Pcs.	3360(Including battery )
13	HBES/P-75KW	75	800×600×2200	3Pcs.	4960(Including battery )
14	HBES/P-93KW	93	800×600×2200	4Pcs.	6570(Including battery )
15	HBES/P-110KW	110	800×600×2200	4Pcs.	6580(Including battery )
