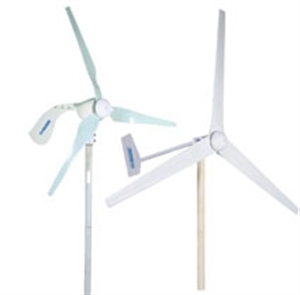

Picture of HBXHORIZONTAL AXIS WIND TURBINE serise

HBXHORIZONTAL AXIS WIND TURBINE serise

SKU: FS00019598
Reproduction is welcome and allowed for free circulation only.

Overview(HBXHORIZONTAL AXIS WIND TURBINE serise)
This horizontal axis wind turbine is designed and manufactured by our company, it adopts the most advanced permanent magnet synchronous generating chnology, the rotor is designed to be high efficient, the energy utilization factor reaches the intern-ational advanced level, the whole generator has high efficiency, is in a leading level.of the world.
Product features(HBXHORIZONTAL AXIS WIND TURBINE serise)
1. Adopt "AC-DC-AC" power supply style, accompany with rectify-control inverter thatrectify the AC from generator to DC and store into battery.
2. The main componen, generator adopts the most advanced, rare earth,permanent magnet, three-phase AC generator in the world. It has advantages of high efficiency,high power, small size etc.
3. Wind rotor is well designed according to material machenics and aerodynamics principles. It runs stable and quietly, has the unique strong wind stall protecting feature.
4. The maximum utilization factor of wind rotor is 0.38-0.42, resches the international advanced level of off-grid wind turbine.
5. The body uses overall manufacturing so that the generator can still running in poorenvironment.
6. Unique pre-biased anglel of tail vane design,enables it automatic pointing the directionof wind when running normmally, has side-slip speed adjusting and strong wind protecting functiongs while the output power is increasing.
Applications (HBXHORIZONTAL AXIS WIND TURBINE serise)
According the size of the product's power , it can support independent running home electronics and lighting. Moreover, it can provide power for communication stations,border stations, wind-solar complementary street lights, environmental parks, ecological parks, green schools, ecological villas etc. It can provide green energy to the power grid when combining with grid-connected controller. The above applications can be widely used in areas that is not covedr by power grid but with abundant wind resources, such as islands, grasslands pasturing areas, montains, resorts etc.
Technical Parameters (HBXHORIZONTAL AXIS WIND TURBINE serise)
Model HBX300 HBX400 HBX500 HBX1000 HBX2500 HBX5000 HBX10K HBX20K
Parameters
rated power 300 400 500 1000 2500 5000 10000 20000
MAX power 600 400 1000 1000 5000 7500 15000 30000
ated voltage 24 12/24 48 48 240 240 240 360
diameter of rotor 2.5 1.75 3.2 4 5 6 8 11
starting wind speed 2.5 2.5 2.5 2.5 2.5 3.5 3.5 3.5
safe wind speed 50 50 50 50 50 50 50 50
way of yawing Mechanical Mechanical Mechanical Mechanical Digital Digital Digital Digital
rated rotating speed 400 450 350 280 240 198 180 150
shell material Steel Aluminum Steel Steel Steel Steel Steel Steel
blade material FRP reinforced
plastic
FRP FRP FRP FRP FRP FRP
no. of blades 3 3 3 3 3 3 3 3
dragline
tower
Height 6 6 8 9 --- --- --- ---
Thickness 3.25 2.5 3.25 3.5 --- --- --- ---
Diameter 89 48 114 140 --- --- --- ---
advised matching
inverter type
sine wave sine wave sine wave sine wave sine wave sine wave sine wave sine wave
advised matching
battery
12V200Ah×2 12V150Ah×2 12V200Ah×4 12V200Ah×8 12V200Ah×20 12V200Ah×40 12V200Ah×80 12V200Ah×160
