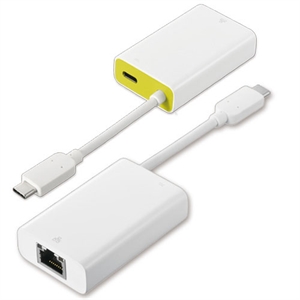

Picture of AEC1100 USB-C to Gigabit Ethernet Adapter with PD Charging

AEC1100 USB-C to Gigabit Ethernet Adapter with PD Charging

SKU: FS997310
USB-C male connector
Reproduction is welcome and allowed for free circulation only.

Introduction

The USB-C to Gigabit Ethernet Adapter with PD Charging allows users to connect to a 10/100/1000Mbps network via USB-C port on PC or Laptop. No need to purchase an extra Gigabit network card and share a PCI or Cardbus slot. Compliant with USB 3.0 specification, this adapter ensures true 10/100/1000Mbps network speed without any compromise. With bus-power, the adapter can provide power supply from PC to the device. With self-power (PD charging function), the adapter can charge PC or Laptop via downstream USB-C port. Bus-powered along with self-powered design provides users more possibilities.


 Feature

  • Upstream Port
    • USB-C male connector
  • Downstream Port
    • RJ45 female connector
    • USB-C female connector: Only for power charging (Pass through from downstream USB-C to upstream)
  • Bus-Powered / Self-Powered (via USB-C port)
  • Supports 10/100/1000Mbps Gigabit Ethernet
  • Supports Wake-on-LAN function
  • Supports IEEE 802.3az (Energy Efficient Ethernet)
  • Supports IPv4/IPv6 pack COE to reduce CPU loading


 Systems Requirements

  • PC with USB-C interface
  • Supported Operating System
    • Windows® 10
    • Mac OS®
    • Chrome OS™


 Specification

User Interface

Upstream

USB-C male connector

Downstream

RJ45 female connector x1

USB-C female connector x1 (Only for power charging)

Power Supply

Bus-Powered

Self-Powered (via USB-C port)

Working Environment

Operation Temperature

 0~40℃

Storage Temperature

 -20~70℃

Compliance

CE, FCC

*Specification is subject to change without further notice.


 Package Contents

  • USB-C to Gigabit Ethernet Adapter with PD Charging
