| Packaging Detail: |
standard package |
| Delivery Detail: |
within 3 business days |

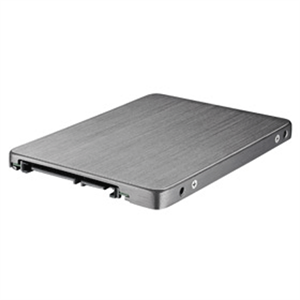

1.2.5'' SATAII 3Gb/s SSD
2.Max Read:220MB/s *Max Write:180MB/s
3.TRIM Support/64MB Cache
4.CE,FCC,RoHS
5.warranty 3 years
| Item |
Model |
60GB |
120GB |
240/480GB |
| General |
Form factor |
2.5" |
2.5" |
2.5" |
| Solution |
SandForce SF-2281 |
SandForce SF-2281 |
SandForce SF-2281 |
| interface |
SATAIII |
SATAIII |
SATAIII |
| |
Capacity |
60GB |
120GB |
240/480GB |
| Cache |
64MB |
64MB |
64MB |
| Sustained Read |
560MB/S |
560MB/S |
560MB/S |
| Sustained Write |
510MB/S |
510MB/S |
510MB/S |
| 4KB Random Read IOPS |
30,000 |
30,000 |
30,000 |
| 4KB Random Write IOPS |
10,000 |
10,000 |
10,000 |
| Average Access time |
0.1ms |
0.1ms |
0.1ms |
| Storage Media |
NAND Flash |
MLC |
MLC |
MLC |
| Power Consumption |
input Voltage |
5V+/_5% |
5V+/_5% |
5V+/_5% |
| Idle |
0.5W |
0.5W |
0.5W |
| Active |
2.0W |
2.0W |
2.5W |
| Reliability& Endurance |
Write endurance |
16years @100GBytes write and erase per day at 60GB |
| Read endurance |
unlimited |
| Wear-Leveling Algorithm |
Dynamic and static wear-leveling |
| Data Retention |
10years at 25ºC |
| MTBF |
2,000,000hours |
| ECC |
Supports BCH ECC 8bits or 15bits in 512 bytes |
| TRIM |
Support |
| Bad Block Management |
Auto Bad Block Management in system |
| Environment |
Operating Temperature |
0-70ºC |
| Non-operating Temperature |
-40-85ºC |
| Shock |
2000G(@0.5ms half sine wave) |
| Vibration |
20G(40-2000HZ) |
| Humidity |
5-95% |
| Warranty |
2years |
| Available unit |
Available,NO EOL |
| Testing Platform |
Intel Core2 Q8200 2.33GHz,DDR2 800 2GB*2 double channel,Intel P45+ICH10R |
| chipset,Win7 7600 RTM |
| Testing Software |
ATTO Disk Benchmark 2.34.0.0 |
| Dimension: |
Height(mm) |
9.5± 0.25 |
| |
Width(mm) |
69.8±0.25 |
| |
Length(mm) |
100± 0.25 |
| |
Weight(g) |
80 |
