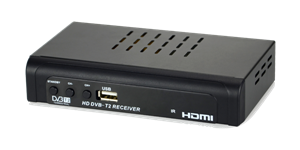

1080p DVB-T2 smart tv box

1080p DVB-T2 smart tv box

SKU编号: FS996685
1080p DVB-T2 smart tv box
欢迎转载 功德无量


1080p DVB-T2 smart tv box

Main feature:

* DVB-T/T2 Compliant(MPEG2/H.264)
* According to standard requirement of NBTC
* Storing Memory: 100 carriers, 500channels
* 7 days Electronic Program Guide(EPG)
* Favorite group and parental lock supported
* Multi-language Subtitle output
* Software upgrade by USB or OAD

Specification:

Tuner Parameter
Input Frequency: (UHF)470∽862MHz
Input Level: -85dBm ~ -20dBm
Input Impendence: 75
Demodulation: QPSK/16QAM/64QAM / 256QAM
Supported DVB-T/T2 Standard

VIDEO
Supported MPEG-1/2/4, AVC/H.264,VC-1 Video Decode
Aspect Ratio: 4:3, 16:9
Supported PAL, NTSC Video Formats
Supported HDMI high-definition Video Output

AUDIO
Supported MPEG-1LayerⅠ&Ⅱ,MP3, AAC-LC,HE-AAC,HE AACv2 Audio Decode
Sampling Rate: 32KHz/44.1 KHz/48KHz
Audio Output Impedance: Low
Output Mode: Stereo, Left and Right

PROCESSOR
Chipset: MStar MSD7802
Flash Memory: 8MB
DDRⅡ Memory: 64MB
Demodulator: MSB1236C

FRONT PANEL
IR Receiver
USB 2.0 Interface
Keys
Display 4 Digit, 7segment LED
LED Indicator

REAR PANEL:
RF IN
RF OUT
COAXIAL
HDMI
CVBS, Audio L&R
DC IN

OTHER Standards:
Input Voltage: DC 5V/1.5A
Power Consumption: 8W Max
Ambient Operation Temperature: 0~40°C
Product size: 146 X 95 X 30mm

ACCESSORIES:
Remote Control, Battery
AV Cable
Power Adapter
User Manual
