Application:

Applied in the field of industrial process controls, battery charging requirements, personal computers, telecommunications, graphics displays, plating and gold recovery industries and wherever required in the commercial, telecoms, mining or industrial markets.Commercial Solar, Recreational Vehicles, Mobile Office, Industrial Wind, Boats, Truck, & RV Residential Solar, Emergency Vehicles, Residential Wind, Fleet & Utility Vehicles, Camping & Outdoors, Renewable Newsletter.

Manual Main Features:

New circuit design high efficiency up to 90%
Battery priority function
Charge current adjustable function(optional)
RS232 communication port
Remoted control function
70-amp automatic three-stage battery charger (bulk, absorption, and float)

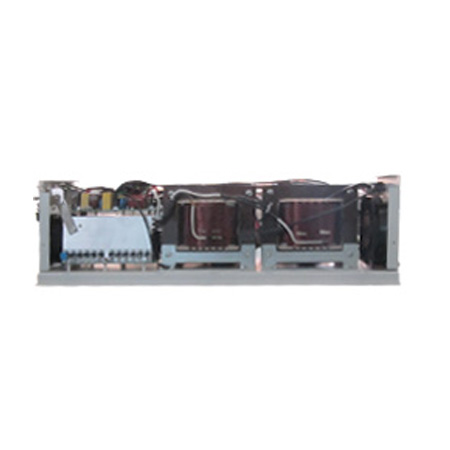

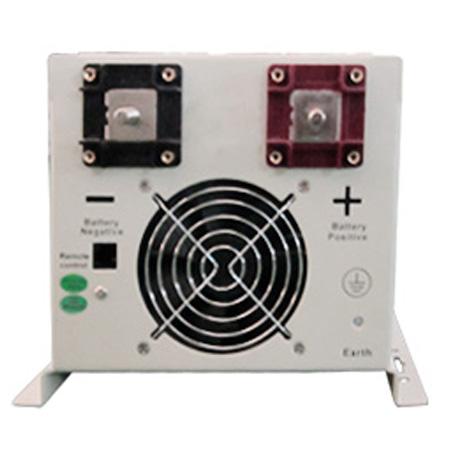

Pure copper transformerinside and pure copper DC terninal port outside.

Specifications:

MODEL (EP3200)	EPModel
	1012	1024	2012	2024	3024	4048	5048	6048
Line Mode Specifications:
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac( selectable)
Low Line Disconnect	155Vac±4%
Low Line Re-connect	164Vac ±4%
High Line Disconnect	272Vac±4%
High Line Re-connect	265Vac±4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Low Line Frequency Re-connect	58+0.3Hz for 60Hz;48+0.3Hz for 50Hz;
Low Line Frequency Disconnect	57+0.3Hz for 60Hz;47+0.3Hz for 50Hz;
High Line Frequency Re-connect	64+0.3Hz for 60Hz;54+0.3Hz for 50Hz;
High Line Frequency Disconnect	65+0.3Hz for 60Hz;55+0.3Hz for 50Hz;
Output Voltage Waveform	As same as Input Waveform
Over-Load Protection(SMPSload)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	10ms (typical)
Transfer Time (Dc to Ac)	10ms (typical)
Charge current	current is adjustable 25% 50% 75% 100%(option)
Max Bypass Overload Current	1kw/2k/3kw: 30A 4kw/5kw/6kw: 40A
Invert Mode Specifications:
Output Voltage Waveform	pure sine wave
Rated Output Power (VA)	1000		2000		3000	4000	5000	6000
Rated Output Power (W)	1000		2000		3000	4000	5000	6000
Power Factor	1.0
Nominal Output Voltage (V)	230Vac
Nominal Output Frequency (Hz)	50Hz ± 0.3Hz
Auto tracking Main Frequency(Hz)	Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz
Output Voltage Regulation	±10% rms
Efficiency (battery mode)	>90%
Over-Load Protection (SMPS load)	(110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes;(125%<load<150%) ±10%: Fault (shutdown output) after 60s;Load>150% ±10%: Fault (shutdown output) after 20s;
Surge rating	3000VA		6000VA		9000VA	12000VA	15000 VA	18000VA
Capable of starting electric motor	1 HP		1 HP		2 HP		3 HP
Output Short Circuit Protection	Current limit (Fault after 10s)
Bypass Breaker Size	10A		30A		30A	30A	30A
Nominal DC Input Voltage	12V	24V	12V	24V	24V	48V	48V
Min DC start voltage	11V/22V/43V
Low Battery Alarm	10.5Vdc ± 0.3Vdc for 12V battery;21.0Vdc ± 0.6Vdc for 24V battery;42.0Vdc ± 0.6Vdc for 48V battery
Low DC input Shut-down	10.0Vdc ± 0.3Vdc for 12V battery;20.0vdc± 0.6Vdc for 24V battery;40.0Vdc± 0.6Vdc for 48V battery
High DC input Alarm & Fault	16Vdc ± 0.3Vdc for 12V battery;32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery
High DC input Recovery	15.5Vdc ± 0.3Vdc for 12V battery;31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery
Power saver	Load ≤25W
Charge Mode Specifications:
Nominal Input Voltage	230Vac
Input Voltage Range	155-265Vac
Nominal Output Voltage	same as input voltage
Nominal Charge Current	35A	35A	70A	35A	45A	35A	40A	50A
Charge Current Regulation	± 5Adc
Battery initial voltage	0 –15.7 Vdc (can operate with 0V battery)
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s
General Specifications
Safety Certification	CE/SONCAP
Safety Certification	FCC
Operating Temperature Range	0°C to 40°C
Storage temperature	15°C below zero to 60°C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Size	1012/1024/2012/2024/2048/3012/3024/3048:580X315X300MM 4048/5048//6048:755X319X288MM
