| ITEM | MODEL | FG-SPS2000W | FG-SPS3000W |
System power
capacity | Rated power capacity(watts) | 2000W | 3000W |
System rated DC
voltage | | 24VDC | 24VDC |
| System output | Voltage | 220V50HZ or 110V/60HZ | 220V50HZ or 110V/60HZ |
| Phase | Single phase | Single phase |
| Wave form | Pure sine wave | Pure sine wave |
| �� | effectual recharge time mini 6 hours. Longer time will Generate more electricity capacity |
Generate electricity
capacity | �� | 5200WH/day | 6400WH/Day |
Reference loads and
expend | only for Reference. You can use the other loads also.please connect with Kemapower to get more advice for different loadsc ondition |
| TV 25 inch | 1PCS 6 horus | 2PCS 6 horus |
| Desk Fan | 4PCS 5 horus | 4PCS 5 horus |
| Ceiling Fan | 1PCS 5 horus | 1PCS 5 horus |
| Energy Save Lamp | 6PCS 4 horus | 6PCS 4 horus |
| Energy Save Lamp | 2PCS 4 horus | 2PCS 4 horus |
| Computer | 1PCS 4 horus | 1PCS 4 horus |
| Home Printer | 1PCS 0.5 horus | 1PCS 0.5 horus |
| Home Water Pump | 1PCS 2 horus | 1PCS 2 horus |
| Washing Machine 6KG | 1PCS 0.7 horus | 1PCS 0.7 horus |
| Refrigerator 160L | 1PCS 24 horus | 1PCS 24 horus |
| micro-wave oven | / | 1PCS 0.5 horus |
| Expend capacity | 5200WH/day | 6400WH/Day |
| Power Inverter | Mode | N-PSW2KW/24VDC | N-PSW3KW/24VDC |
| Max load capacity | 2000W | 3000W |
| Design features | High Frequency Pure sine wave |
| Protection | short circuit, overload,battery low, |
| Efficiency | > 88% |
| Standing by wastage | less than 12W | less than 12W |
| Remark | please to the N-PSW series product details |
| Grid hybrid Inverter (optional) | Mode | N-PSW2K-G | N-PSW3K-G |
| Combine Charge voltage | 24VDC | 24VDC |
| Combine Charge current | 0-40Amp for requirement | 50Amp for requirement |
| Charger manage | CPU control three step charge stage |
| Transfer voltage | transfer to Grid power when DC < 21.0V or 42V. Back to Battery mode again when DC
> 37.4V or 74.8V |
| Controller | Mode/PCS | MPPT1224-30,2PCS | MPPT1224-40AMP,2PCS |
| Rated charge current | 60AMP | 80AMP |
| Rated charge voltage | 24VDC | 24VDC |
| Charge control mode | Series PWM charge mode & State of Charge(SOC),Automatic compensation |
| Remark please refer to the MPPT series product details |
| Battery Bank | Mode | 100AH/12VDC GEL | 100AH/12VDC GEL |
| Battery type | Deep cycle gel battery |
| Capacity | 900AH/24VDC, 18P | 2200AH/12VDC,22P |
| Battery cabinet | A20. 4 layer with wheels | C24. 4layer |
| backup days | 3 days under for the Reference loads and expend. Extensible |
| Remark | please refer to the GEL series product details. |

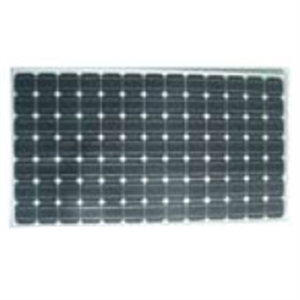

| Solar module | Mode | MONO150WP/35VDC | MONO150/35V |
| capacity | 150WP*10PCS | 150WP*12pcs |
| Cell efficiency | 14.13% | 14.13% |
| Solar mounting | 5 array for 10*150WP 6 array for 12*150WP |
| The other parts | Breaker,Arrester,wire collector,Cables set |
