LED Street Light Head DYCH Series

SKU: FS00018952

Reproduction is welcome and allowed for free circulation only.

Key features��Long service life
��Green and environmental protection ��High luminance and good stability��Easy installation and rare replacement��Uniformly distributed light and color.��Great illuminating angle: 120�� or above��Accurate constant-current driving with current fluctuation less than 1mA.��Strict temp control: Temp up at work is below 20 degree. Overheat protection will automatically starts ifthe operating temp is more than 70 degree.��Special circuit protection: The protection can prevent whole circuit from current overflow or unbalanced caused by single failed LED, saving the whole lamp.��Integrative design of efficient heat radiation.��Unique light distribution system is-with more uniform brightness.��Patent shape design from international well known industry design institute.

Technical Specifications
Model DYC030H DYC040H DYC050H DYC060H DYC080H
Power(W) 30W 40W 50W 60W 80W
LED Amount 30PCS 40PCS 50PCS 60PCS 80PCS
Input voltage 12V/24VDC 110V/220VAC
Frequency >50HZ/60HZ
Power factor >0.96-0.99
Power Efficiency 88%-91%
Harmonic distortion <15
Luminous Flux 3300lm 4400lm 5500lm 6600lm >8800lm
LED color temp White(warm/neutral/cool),Select before order.
Working Temp. Rise ��20�� 25��
Ambient temp -30 to 40��

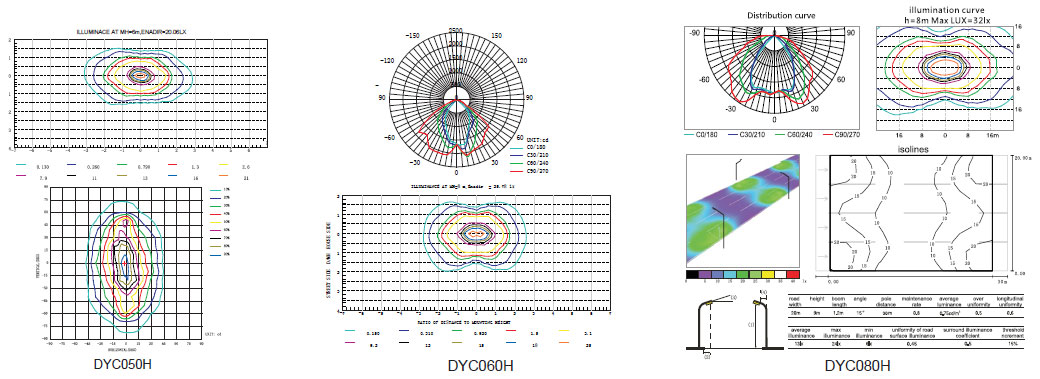

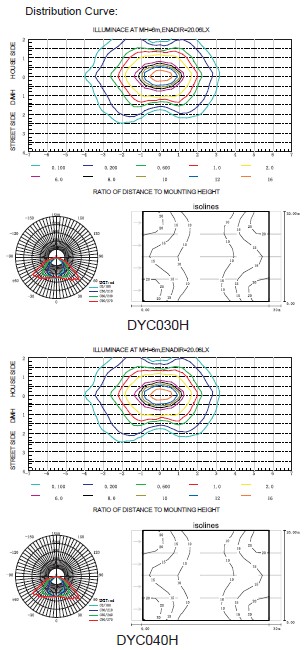

Centric illuminance
4M��35Lux6M��18Lux
7M��18Lux8M��13Lux
7M��28Lux8M��20Lux
7M��32Lux8M��24Lux
6M��45Lux8M��26Lux10M��17Lux
Illuminate Range 14M20M 26M28M 26M32M 26M32M 20M28M35M/TD>
Pole Height 3-7M 7-8M 5-8M 5-8M 6-10M
Service life >50000Hours
Casing material Aluminum alloy die casting
Moisture allowed ��95%
Protection grade IP65

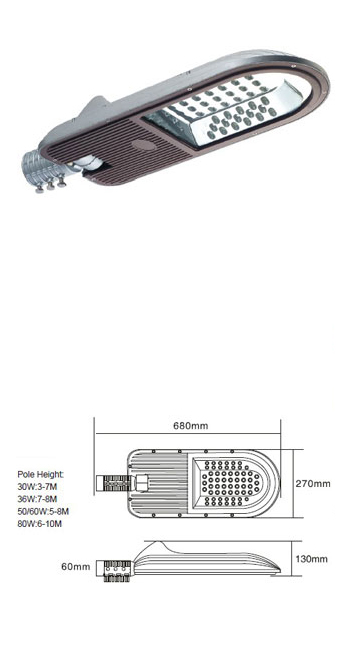

Product Size(mm) 680*270*130 680*270*130 680*270*130 680*270*130 680*270*130
Package(mm) 725*320*190 725*320*190 725*320*190 725*320*190 725*320*190
N.W.(kg) 7.4kg 7.4kg 7.4kg 7.4kg 7.4kg
G.W.(kg) kg 8kg 8kg 8kg 8kg
Remark 1.LED: High Power LED,1W/PCS,Chip Brand: EPISTAR, 110LM/W
2.For theLED Street light, still need Pole, PV Panel , PV mounting,Solar Charge Controller, Solar Battery and Battery Box. pls inquire while need.
