HBC (HBC-DFG)DC AC inverters

SKU: FS00019610

Reproduction is welcome and allowed for free circulation only.

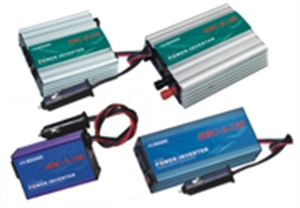

(HBC (HBC-DFG)DC/AC inverters)

HBC-C-350, HBC-C-400, HBC-C-500,
HBC-C-1000, HBC-C-1500
● With aluminium alloy chassis
● Designde for vehicles, ships and household
● Binding clips for DC input

Brief introduction(HBC (HBC-DFG)DC/AC inverters)

HBC series DC/AC inverter is one of the most advanced converter to get AC power from DC power supply at present.It can be used in no-AC power place,vehcle,ship and so on.. The average mean time before failure(MTBF) is more than several years.

Operating principle(HBC (HBC-DFG)DC/AC inverters)

HBC series DC / AC inverter consists of two stages.The first stage is a DC/AC step-up converter with about 310V DC output. The second stage is a bridge inverter with 310V DC input and AC output of 220V 50Hz.It eliminates the need of bulky transformer by using high frequency convertion technology and has good endurance of overloading.

Application (HBC (HBC-DFG)DC/AC inverters)

nverter is a hi-tech product that converts the DC power (get from battery or other power source) into 220V/50Hz AC power. HBC series features small size, less weight, easy to use and low emission level by adopting highly sophisticated technology.
HBC series DC / AC inverter consists of 3 types according to power range and design rinciple.

Technical specification (HBC (HBC-DFG)DC/AC inverters)

A
HBC-A-50, HBC-A-100, HBC-A-150
● Slim,space-saving design
● Double-layer PCB
● Small power capacity
● For vehicles

B
HBC-B-150, HBC-B-200, HBC-B-300
●Middle power capacity
● Single-layer PCB
● Binging clips for DCinput(HBC-A200/300)
● Car ignition nob for DC input(HBC-A-150)

C
HBC-C-350, HBC-C-400, HBC-C-500,HBC-C-1000, HBC-C-1500
● With aluminium alloy chassis
● Designde for vehicles, ships and household
● Binding clips for DC input

Output voltage waveform(HBC (HBC-DFG)DC/AC inverters)

The output voltage wave form of HBC series DC/AC inverter is modified sine wave.It is stable and suitable for various electric appliance.Note:the output voltage measuring error is about 20V by using general digital meter or analog meter. E.g. the output voltage

Installation and connection(HBC (HBC-DFG)DC/AC inverters)

Connect the inverter to a adequate battery(or DC power supply) which can provide enough current. The current.The current rating(Ir) of the DC power supply should be as following: Ir=PL/10 Where PL is load power or electric appliance power E.g. PL=100W,then Ir=100/10=10A.that is the DC power supply for the inverter must have 10A current ranting or more than 10A.
Turn on the power switch, the indicator lighting means the inverter run mormally. Then insert the load plug into the AC output.Caution:some mickel-cadmium cell charger will be damaged if it is used with the inverter.
The following product may have this problem:
1. Mini electric appliance with rechargeable battery that can be charged with AC power directly,as flash lamp, electric shaver,emergency lamp etc.
2. Some chargers are forbidden with the high voltage load,such as the battery changer in mini tools.
3. Mini power supply with capacitor for voltage step-down.

Technical specification(HBC (HBC-DFG)DC/AC inverters)

●Output power: 150VA~1700VA	●Output Frequency (Hz): 50
●Continuous Output: Rated value	●Input Voltage(VDC): Rated value ±25%
●5 Minutes: Rated value×1.3 times	●Output Waveform: Sine Modulated PWM (modified sine wave)
●Inst: Rated value×2 times	●Electric Eneergy Convert Efficiency: 87%
●Output voltage (VAC): 220V	●No-load loss: <0.5

Model & Spec (HBC (HBC-DFG)DC/AC inverters)

Model	tline size(cm)	Model	tline size(cm)
HBC-A-150VA	170×70×45	HBC-C-350VA	200×135×70
HBC-B-150VA	150×140×52	HBC-C-500VA	230×135×70
HBC-B-200VA	170×140×52	HBC-C-1000VA	340×232×90
HBC-B-300VA	190×140×52	HBC-C-1200VA	340×232×90
HBC-B-350VA	190×140×52	HBC-C-1500VA	340×272×100
		HBC-C-1700VA	340×272×100
