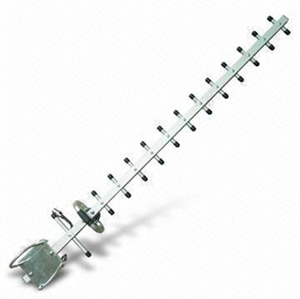

Изображение 3G Yagi Antenna

3G Yagi Antenna

Артикул: FS00034347
3G Yagi Antenna
Reproduction is welcome and allowed for free circulation only.


  • 3g UMTS Yagi Antenna, HSPDA Antenna, 1920 to 2170MHz, Gain 15DBI, 2.1GHz Application, 3G Wireless
  • 3G UMTS/HSDPA Yagi antenna
  • Item: D1900Y18A18
  • Frequency range: 1920 to 2170MHz
  • Gain: 18dBi
  • Elements: 18
  • V.S.W.R: ≤ 1.5
  • Polarization: vertical or horizontal
  • Horizontal: -3dB beamwidth 36-degree
  • Vertical: -3dB Beamwidth 22-degree
  • Impedance: 50 Ohms
  • Front-to-back ratio: ≥ 18dB
  • Maximum input power: 50W
  • Connector type: N-F
  • Lightning protection: direct ground
  • Dimension:710mm
  • Weight: 1.5Kg
  • Radiating element material: brass
  • Operating temperature: -40 to +60 deg.C
