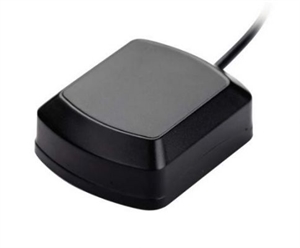

Iridium antenna

One. Dielectric antenna specification
1.Patch antenna chip:35x35x2mm
2.Frequency range:1602-1626MHZ

3. V. S. W. R 1.5:1
4. Band width30 MHZ
5. Attenuation fo+/-100mhz>30db
6. Impendence 50 ohm
7. Peak gain >3dbic based on 7*7cm ground plane
8. Gain coverage >-4dbic at -90<0<+90(over 75% volume)
9. Polarization rhcp


Two. Mechanical specification

IRI-01

1. Weight <150gram
2. Size .49X39X14MM

3. Cable LMR200/U 3m or 5m cable
4. Connector :SMA male straight Others
5. Mounting base: Magnitec
6. Housing black

Three. Environmental specification
1. Working temp -40~+85
2. Storage temp -40~+100
3. Vibration sine sweep 1g(0-p)10~50~10hz each axis
4. Humidity 95%~100%rh
5. Weatherproof:100%
6. Mtbf=1*10-6/pc. Hr 40+/-5 dc=5.0v+/-0.5v 2000pcs for 480
