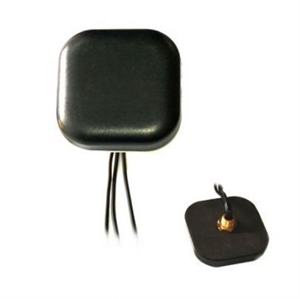

GA-GPS/Wifi/Iridium-01
( I) Product Overview
(i)GPS Antenna
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cmx7cm ground plane
Gain Coverage >-4dBi at –90°<0<+90°(over 75% Volume)
Polarization:RHCP
LNA Gain(Without Cable) :28dBiTypical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Minf0+/-20MHz ;
20dB Minf0+/-50MHz;
30dB Minf0+/-100MHz
VSWR <2.0
DC Voltage(V): 2.7/3.0/3.3/5.0/3.0to 5.0etc.
DC Current(mA):11Max
(ii)WIFI Antenna
Frequency(MHz):2400-2500
VSWR ≤1.5
Gain(dBi): 2.15
Impedance(Ω): 50
Polarization:Vertical
(iii)Iridium Antenna
Frequency(MHz): 1616-1626
Impedance(Ω): 50
Peak Gain >3dBi Based on 7cmx7cm ground plane
Gain Coverage >-4dBi at -90°<0<+90°(over 75% Volume)
( II )Mechanical
Weight(gram)<240
Size(mm): 70x70x14
Cable GPS(m): RG174 2,5etc.
wifi(m): RG174 2,5etc.
Iridium(m): RG174 2,5etc.
Connector GPS: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCXetc.
wifi: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Iridium: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting: Screw(Hole/Roof)
Housing: Black
( III )Environmental
Working Temp: -40'C~+85'C
Storage Temp: -45'C~+100'C
Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof: 100%Waterproof
