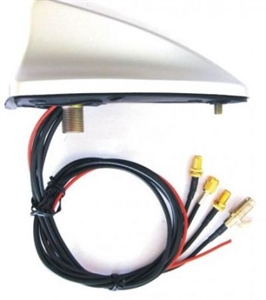

GPS, GSM, FM/AM, DVB-T Funtions 4 in 1
Frequency: GPS 1575MHz+-3MHz
Band width: +-5MHz
Impedance: 50ohms
SWIR: 1.5:1
Gain: >3dbi
Cable: RG174
Frequency: GSM 890-960MHz, 1710-1990MHz
Impedance: 50 ohms
SWIR: <2
Gain: 2.15dbi
Cable: RG174
Frequency: 76-110MHz (FM), 525-1700MHz (AM)
Gain: +20dB (FM), +5dB (AM)
Impedance: 75 ohms
Cable: 3C-2V
Voltage: 10-14V
Frequency:DVB-T 174~240MHZ/470-860MHZOutput Impedance: 50 ohmsV.S.W.R: <2.0Gain: 3dB(Input Power-30dBm)Work Voltage:3.3V or 5VWork Current:<10mACoax Cable:50 ohms Connector: SMA/MCX/MMCX/F or othersFit Car: UniversalCable length: 8''
Dia. of installation hole: diameter 15mm
Color:Silver and Black
For VW, GM, Audi, BWM, Peugeot
Size:145MM*75MM*55MM
Limited warranty 12 months for parts and 12 months for labor.
Support URL: http://www.firstsing.com
Support Phone Number: 86-0755-29889139
