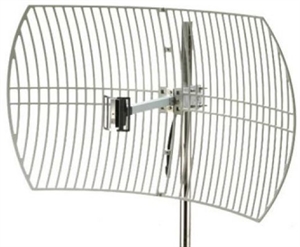

Picture of 2.4G Parabolic antenna

2.4G Parabolic antenna

SKU: FS00034607
2.4G Parabolic antenna
Reproduction is welcome and allowed for free circulation only.

315Mhz,433Mhz,2.4G,3.5G,5.8G Antenna
Frequency range 2400~2483MHz
Bandwidth 83MHz
VSWR ≤1.5
Gain 24dBi
Max Power 200W
Polarization Vertical or Horizontal
Horizontal Bandwidth10º
Vertical Bandwidth 14º
F/B ratio ≥31dB
Input impedance 50Ω
Connector N-K
Size 0.6*0.9m
weight 3.2kg
Resist the intensity of wind; 60M/S


Product Profile
The antenna is designed for special telecommunication, adopting guiding feed system to adapt the preliminary irradiation direction to the mouth surface in efforts to guarantee an optimal status at work. It features high gain, long distance, delicate structure, convenient installation, and small wind resistance.
