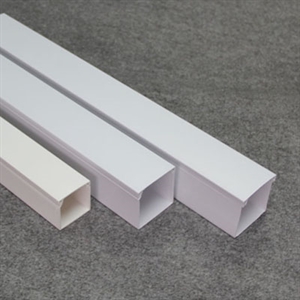

Square Electrical PVC Wire Ducts の画像

Square Electrical PVC Wire Ducts

SKU: FS00037124
Square Electrical PVC Wire Ducts
Reproduction is welcome and allowed for free circulation only.


1.Description ofPVC Wire Ducts

Material High DensityPVC
Size 16x16mm,25x16mm...100x50mm
Thickness 0.6-2.0mm
ColorWhite/White Blue
Length 2.9m or customized
PerformanceWith sticker or without sticker
StandardEN/13245-2/2005
Business Manufacturer or OEM

2. MainFeatures ofPVC Wire Ducts

Impact Strength

Resistant to compression and impact, suitable to be buried in concrete

Non-Conductive

Good insulation, able to resist 25KV voltage, assuring a safe system

Fire-Resistance

With self-extinguishing function

Anti-Corrosion

Resistant to acids, bases and salts, lower maintenance cost and longeruseful life.

Smooth Surface

Small friction and high flow capacity to ensure the cables go through smoothly

Easy Installation

Light weight, easy to cut, transport, bent and handle; easy connecting and threading joining without leakage

3.Specification ofPVC Wire Ducts

Following size is our current size for the Plastic Cable Channels, and custom sizesare accepted.

Siz(MM)

Thickness(MM)

Package(PCS/Bundle)

16X160.63/0.80/1.0040
20X100.45/0.55/0.7050
24X140.65/0.7550
25X160.63/0.72/1.0025
25X250.75/0.9520
40X160.60/0.80/1.0020

40X20

0.75/0.9020
40X250.68/0.76/1.00/1.2010
40X401.3810
50X251.0010
50X501.10/1.25 4
59X220.85/1.1010
60X401.20/1.40 6
75X501.25/1.50 2
75X751.30/1.50 2
100X270.90/1.20 5
100X401.35/1.50 2
100X601.65/1.90 2
100X1001.60/2.00 1
