Image de Multi-function antenna

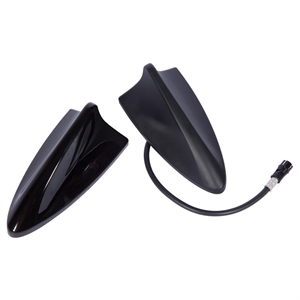

Multi-function antenna

SKU: FS00037830
Multi-function antenna
Reproduction is welcome and allowed for free circulation only.


GPS&GSM Combination AntennaModel:GKA-CA-001
GPS antenna:1) Center frequency: 1,575.42MHz+/-3MHz2) Gain:28dB3) V.S.W.R: 1.5:14) Band width: +/-5MHz5) Impendence: 50 ohms6) Polarization: RHCP
GSM antenna:1) Center frequency: 800 900 1800 1900MHz2) Gain:3dB3) V.S.W.R: 2.0:14) Impendence: 50 ohmsDVB-T antenna1) Center frequency: 173-230/470-860MHz2) Gain:3dB3) V.S.W.R: 2.0:14) Impendence: 75 ohmsAM/FM antenna1) Center frequency: AM FM2) Gain:3dB3) V.S.W.R: 2.0:14) Impendence: 75 ohms
Mechanical:1) Weight: <150g2) Size: 102×66×21mm3) Cable: 3m/5m4) Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX5) Mounting: Adhesive
Environment:1) Working temperature: -40~+85°C2) Storage temperature: -45~+100°C3) Vibration sine sweep: 1g(0-p)10~50~10Hz each axis4) Humidity: 95~100% RH5) Weatherproof: 100%
About us1) Payment Terms: T/T,Paypal,WU2) MOQ:100pcs3) Delivery time: 5 days4) Sample Time: 2-3 days
