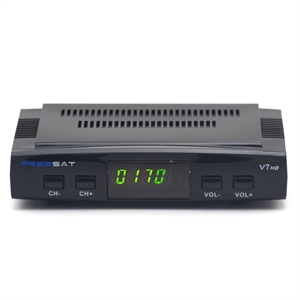

Full HD DVB-S2 V7 smart SET TOP tv box
Ⅰ. Brief Function:
1, 1080P Full HD DVB-S2
2, Support PowerVu,DRE & Biss key
3, Support USB PVR Ready and USB wifi to Network Sharing
4, Support Full speed USB 3G dongle
5, Support YouTube, Youporn via usb Wifi dongle
6, Support Cccam, Newcam via usb Wifi dongle
Ⅱ.Specification:
Product Size (MM):110*70*20 (L*W*H)
Packaging :20 pcs/ctn
Gift Box size(mm):203*154*59MM
Carton size(mm):430*335*320MM
Panel display:Yes
Display Color:Green
Button:CH+/CH-/VOL+/VOL-
USB:1 x USB 2.0 High Speed Host
IR:Exit IR for 38KHz
Output Interface:LNB IN*1, DV OUT, USB, AV, Power supply
HDMI HDMI(up to 1080P) output
III. Main Features:
Heatsinking:Yes, Main Chip
Encrypt:yes
Video Modulator yes
Power Supply:Input 110V ~240V, 50/60Hz
Video Decode:AC-3,MPEG-2 MP@HL;H.264 BP MP&[email protected];AVS [email protected]/4.0/2.0
PAL/NTSC:Automatic PAL/NTSC conversion
Channels Number:6000 channels TV and Radio programmable
Favorites:8 different favorite groups selection
OSD Language:English German French Portuguese Spanish Italian Russian Turkish Polish Arabic Farsi
EPG:Fully support to 7 days Electronic Program Guide(EPG)
Picture:JPEG,BMP,PNG,GIF Supported
OSD Color:16-bit OSD with anti-flickering
Channel Search:Channel search in automatic, manual and network search
Channel Edit:Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Parental Ctrl:Parental control for channels
Easy Menu:Plug and Play installation, with an easy to use Menu System
SoftUpgrade:Software upgrade through USB
Time Set:Time set by GMT offset automatic and manual,Summer Time support
Timer:5 event timers,off/Once/Daily/Weekly Mode
Subtitle:Subtitle support
Teletext:VBI insertion for Teletext,CC and WSS
Save Channel:Automatic save for last channel
IV.Electric Performance
1.Memory Size:
Flash Memory:32MB Serial Flash
DDR2 Memory:512M
2.DVB-S2 Tuner
Input Frequency Range:950MHZ-2150MHZ
Input Impedance:75Ω
RF input Signal LEVEL:-80/-20dBM
Active Ant Power:13/18V DC @ 400mA MAX,Overload Protection
3.DVB-S2 Channel Decode
Demod standard:DVB-S2 Standard
MPEG Profile Level:AC-3,MPEG-2 MP@HL;H.264 BP MP&[email protected]
Demodulation:QPSK,8PSK,16APSK,32APSK
4.USB Decode
PVR :Support
Media Supporting:USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card
File system:FAT32, NTFS (only support first partition)
USB:PVR with USB HDD, Time shifting with USB HDD
USB Wifi:Support (RT5370 module)
5.Multimedia support format
movie:mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
music:mp3
photo:JPG, BMP, PNG, GIF
6.Video Decode
Video Decode:High Definition MPEG4 AVC/H.264 [email protected],MPEG-2 MP@HL/ML
Aspect Ratio:Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
7.Audio Decode
Audio Decode:MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC
Sound Mode:LEFT/RIGHT/STEREO/MONO
Sampling Frequency:32KHz, 44.1KHz, 48KHz
8.Environment
Input Voltage:Input 110V ~240V, 50/60Hz DC12V
Consumption:10W Max
Temperature:0℃ to +50℃
Humidity:<95%
