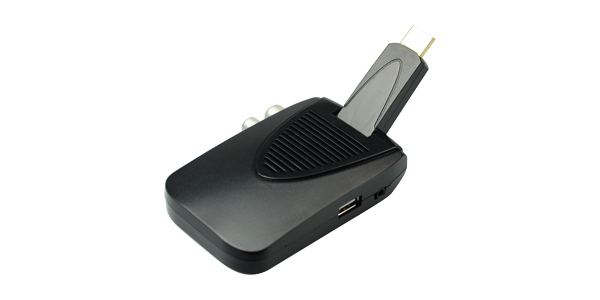

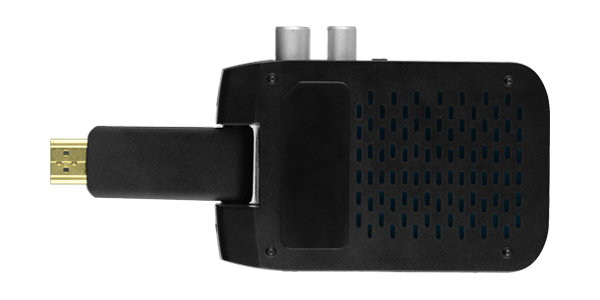

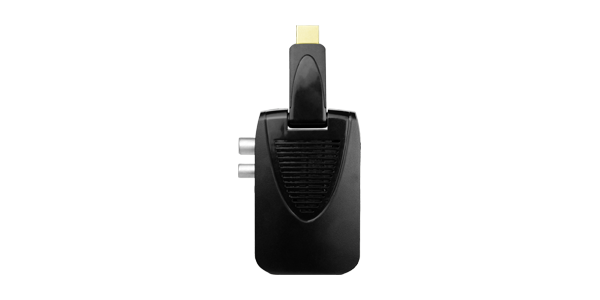

MPEG2 H.264 DVB-T2 Smart TV BOX
Main feature:
* DVB-T/T2 Compliant (MPEG2/H.264)
* Storing Memory: 100 carriers, 500channels
* 7 days Electronic Program Guide(EPG)
* Favorite group and parental lock supported
* Multi-language Subtitle output
* Software upgrade by USB or OAD
Specifications:
Tuner Parameter
Input Frequency: (UHF)470∽862MHz
Input Level: -85dBm ~ -20dBm
Input Impendence: 75
Demodulation: QPSK/16QAM/64QAM / 256QAM
Supported DVB-T/T2 Standard
VIDEO
Supported MPEG-1/2/4, AVC/H.264,VC-1 Video Decode
Aspect Ratio: 4:3, 16:9
Supported PAL, NTSC Video Formats
Supported HDMI high-definition Video Output
AUDIO
Supported MPEG-1LayerⅠ&Ⅱ,MP3, AAC-LC,HE-AAC,HE AACv2 Audio Decode
Sampling Rate: 32KHz/44.1 KHz/48KHz
Audio Output Impedance: Low
Output Mode: Stereo, Left and Right
PROCESSOR
Chipset: MStar MSD7802
Flash Memory: 8MB
DDRⅡ Memory: 64MB
Demodulator: MSB1236C

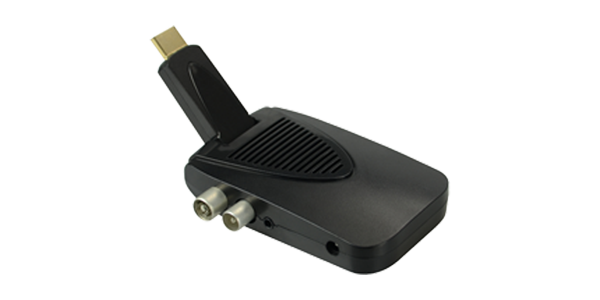

Left SIDE PANEL
RF IN
RF OUT
AV OUT
DC IN
RIGHT SIDE PANEL
IR IN
USB 2.0 Interface
REAR PANEL
HDMI
OTHER
Input Voltage: DC 5V/1.5A
Power Consumption: 8W Max
Ambient Operation Temperature: 0~40°C
Product size: 153 X 75X 25mm
ACCESSORIES
Remote Control, Battery
Power Adapter
1 to 3 RCA Cable
User Manual
IR extension cable
