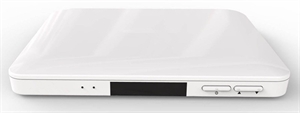

Picture of DVB-C Tuner receiver HD 1080p H.264 HDTV SDTV MPEG-4 Set Top Box

DVB-C Tuner receiver HD 1080p H.264 HDTV SDTV MPEG-4 Set Top Box

SKU: FS996984
DVB-C Tuner receiver HD 1080p H.264 HDTV SDTV MPEG-4 Set Top Box
Reproduction is welcome and allowed for free circulation only.


DVB-C Tuner receiver HD 1080p H.264 HDTV SDTV MPEG-4 Set Top Box


Main Features:

Fully compliant with DVB-C digital TV reception standards
HDTV/SDTV MPEG-2 & MPEG-4 H.264 decoding
Support 480i/480p/576i/576p/720p/1080i/1080P
HDMI output for High Definition
Support S/PDIF audio output
Support teletext / subtitle / multi-language
Support EPG
Channel edit function including Favourite, Move, Delete, Lock,Skip,Rename
Variable aspect ratio 4:3/16:9 4:3 Pan & Scan or Letter Box modes
USB2.0 port at Front, Chip upwards
Support USB 2.0 software upgrade
Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,VOB,WMA“Optional”,BMP,JPG photo playback


Technical specification

Chipset and Memory:
CPU Speed: 700MHz MSTAR
Flash: 64Mbit
RAM: DDR3-1Gbit/1600Mbps
Power:
Input power: AC100~240V 50/60Hz
Maximum power consumption: 15W
Standby power: ≤ 1W

Interface:

RF signal input: x1
RF signal loop out: x1
Video output: RCA x1
HDMI:x 1
Audio output: Stereo RCA x1
Digital Audio output S/PDIF: COAXIAL x1
USB2.0 port for External USB PVR function: x1

TUNER

Tuner: DVB-C
Receiving Frequency: 51~862MHz
Input signal level: 36dBuV~100dBuV
RF Loop out function

Demodulation
Compliant with: DVB-C
Demodulation: 16QAM/32QAM/64QAM/128QAM/256QAM
IF bandwidth: 8MHz J83-A/C

Video Decoding
Compliant with: MPEG-4 part10 /MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@Level3 10Mbps
MPEG-2 Main Profile@ Main Level 15 Mbps
H.264 MP@L3 10Mbps,H.264 [email protected] 25Mbps Aspect ratio: 4:3/16:9
Video format: PAL / NTSC
Resolution: 480i/480p/576i/576p/720p/1080i/1080P

Audio Decoding
Compliant with: MPEG-1/2/3, HE AAC“Optional”, AC3“Optional”
