Adjustable TV MOUNT HANGER 30- 65 ''

Description
Universal holder, hanger for TVs / monitors with the VESA standard, max 600x400
Adjustable TV MOUNT from 32 - 65 ''
Steel structure with large wall plate. strength up to 45 kg
Universal wall mount for televisions of 32-65 ”inch
tilt adjustable from +15 to -15 degrees.

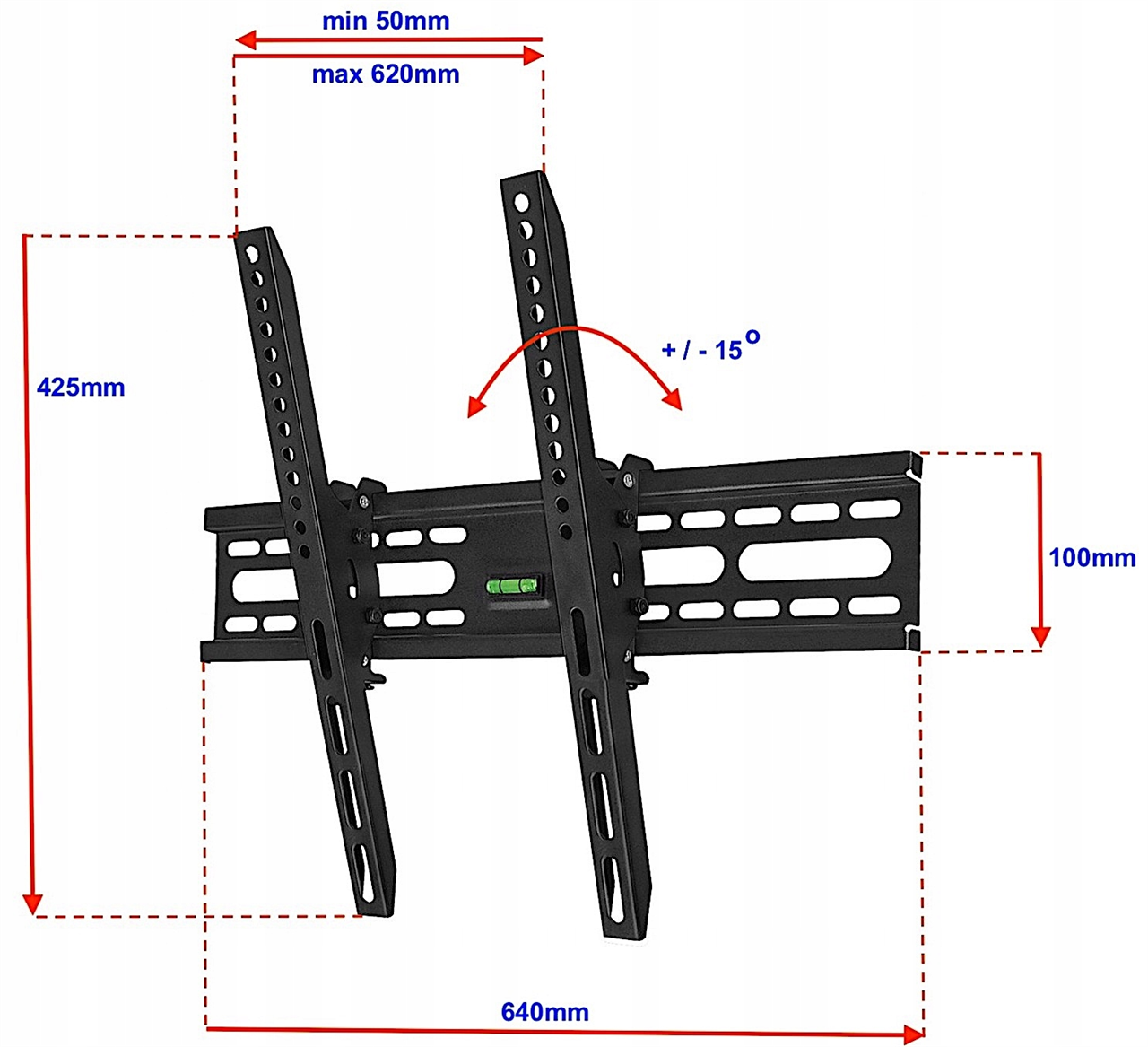

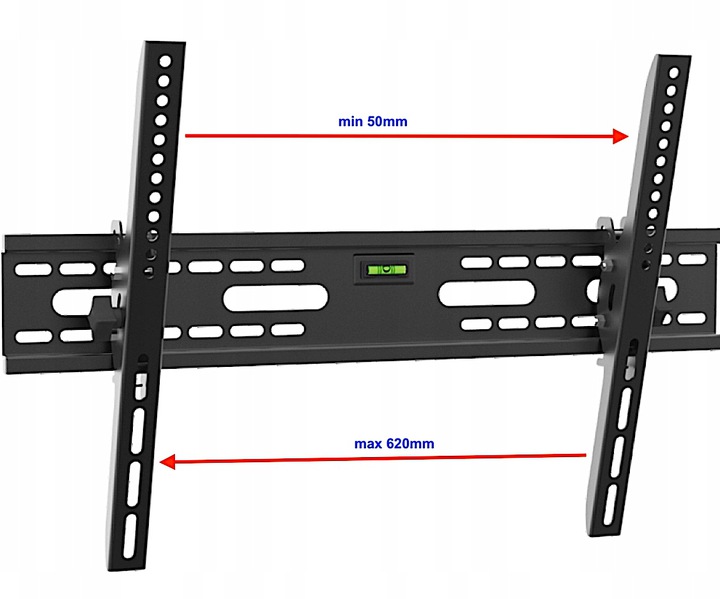

It has a smoothly adjustable spacing of mounting holes from 75x75mm to 600x400mm (the first value is the distance between the horizontal holes, the second value is the distance between the vertical holes).

If your TV set has mounting holes that fall within this range
and does not exceed a weight of 45 kg, the presented bracket will fit.

TECHNICAL SPECIFICATION:
Permissible load (kg) 45
Diagonal screen size (inch) 23 "- 65"
Distance from the wall 53mm
Vertical angle adjustment (tilt): +15 / -15 degrees
Black colour
Built-in spirit level for easy installation
Very high-quality workmanship
Maximum size of mounting to TV / Monitor: 600x400mm
VESA: 75x75, 100x100, 200x200, 300x200, 300x300, 300x400, 400x400, 500x400, 600x400
and other intermediate ones, e.g. 200x400 or 400x200
VESA standard
The VESA standard is the worldwide standard for how to attach a mount to a TV. It is determined by the spacing of holes on the back of the TV set in millimeters.

The most common parameters for the spacing of the holes are: 50x50, 75x75, 100x100, 200x100, 200x200, 400x400, 600x200, 600x400, 600x300 mm.

Mounting holes spacing
VESA [width X height]:
100x100,
200x100,
200x200
300x200
300x300
400x200
400x300
400x400
600x400
and other intermediate ones, e.g. 200x400 or 400x200

The set includes screws and mounting pins

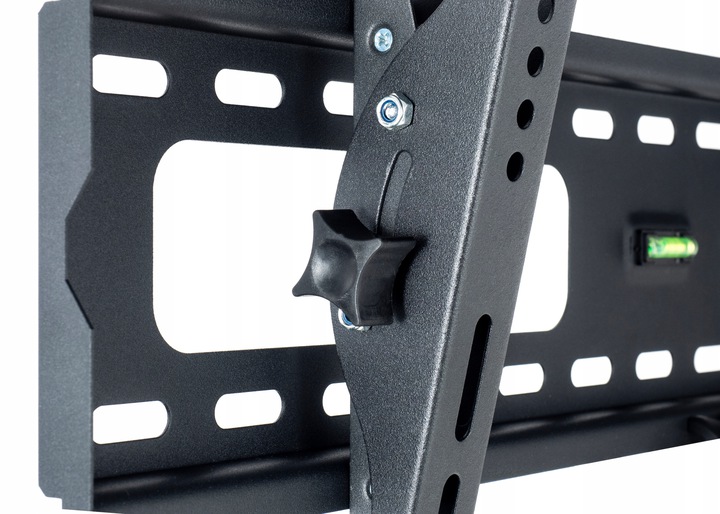

Adjusting the angle of operation of the handle
+ 15 / - 15 ° (up / down),
which is able to meet the requirements of even the most demanding users.

DISTANCE from the wall:53 mm, which makes it incredibly versatile and attractive.

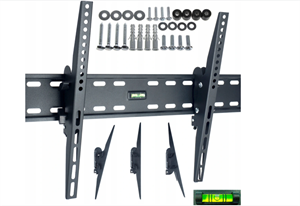

The SET includes:
Handle
Installation instructions
A set of bolts and nuts needed for assembly
