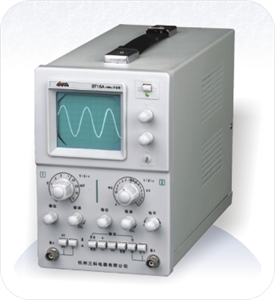

Analog Oscilloscope

SKU: FS00019550

Reproduction is welcome and allowed for free circulation only.

Main Features

●two agile ways of trigger: trigger by signal tested (X)
and by external signal input (EXT)
●With alternating trigger function that can
observe two irrelated signals synchronously
●trigger outlet can output signal CH1 or CH2o tog
ether with signal tested.
●Dual-channel, inner scale, square-shapped
oscilloscope graphic tube
●Scan system adopts full-frequency trigger mode
way to scan the circuit automatically

Overview

Ltem\ Type

ST16A

HZ4318

HZ4338

Display

rectangular screen with internal graduation

Bandwidth

DC-10MHZ-3dB

DC-20MHz-3dB

DC-40MHz-3dB

Deflection Factor

5mV/div～5V/diV±5%,Mag.1mV/div±10%

Rise Time

≤35ns

≤17ns

≤9ns

Vertical Operating Modes

　

CH1，CH2，ALT，CHOP，ADD

Sweep Rate

0.1us/div～0.1s/div±5%

0.2us/div～0.2s/div±5%，Mag. 20ns/div±10%

Trigger Modes

TV Auto，Norm TV

Auto，Norm，TV-H，TV-V

Trigger Sensitivity

INT less than 1div，EXT less than 0.3V

INT less than 1div，EXT less than 0.5V

X-Y Mode （CH1-X，CH2-Y）
Bandwidth

DC-1MHz -3dB

Cal.Signal

Voltage 2Vp-p±2%，Frequency 1kHz±2%

Package Dimension(mm)

135 ×215×320

510 ×420×470

510 ×420×470

Weight

4kg

7.5kg

7.8kg

QTY

4

2

2

QTY(pc)/20FT

166

278

278
