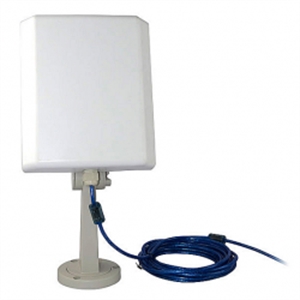

The Blueway highpower wireless usb adapters is comply with IEEE 802.11g and IEEE 802.11b standards, 150Mbps transmission rate Wireless Ethernet USB Adapter. The highest power can be 1000mW, can receive wireless signal from more than 1000 meters place.
It is with USB 2.0 interface, simple Configuration and monitoring on Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X; the use of external SMA Connector detachable antenna, users can replace the antenna on demand to obtain a better signal.
Description
Chipset: Ralink3070 ( 1000mW)
Up to 150Mbps high data-rate and 1000mW high output power
Can be Hot Swap
Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES)
Provides two methods of operation: Infrastructure and AD-Hoc
Supports drivers for Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X
Support outdoor used
Specifications
Software Specification | IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
Wireless Speed | 11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power | 40dBm(MAX EIRP) |
Modulation Type | OFDM/CCK/16-QAM/64-QAM |
Receiver Sensitivity (without Standards antenna) | 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Work Mode | Ad-Hoc Infrastructure |
Wireless Security | 64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Support Operating System | Windows 2000/XP/Vista/Linux/ Win 7 |
Hardware Specification | |
Interface | USB2.0 Hi-Speed connector |
Operating Temperature | 0oC~40oC (32oF~104oF) |
Storage Temperature | -40oC~70oC (-40oF~158oF) |
Relative Humidity | 10% ~ 90%, non condensation |
Storage Humidity | 5%~90% non-condensing |
Dimensions | Unit size: 25.8*16.8*8.5cm ( L*W*H) |
