EW2150 Series 1000VA-6000VA Sine wave UPS

SKU: FS00018872

Reproduction is welcome and allowed for free circulation only.

Application:

- High quality and availablity of energy adapted to suit specific critical needs
- Covering a vast range of applications.Applied to key devices.
- Communication system.
- Computer network system.
- Some devices need harsh electric power environment.

Manual Main Features:

Accurate pure sine wave output ;strong capacity of different load.

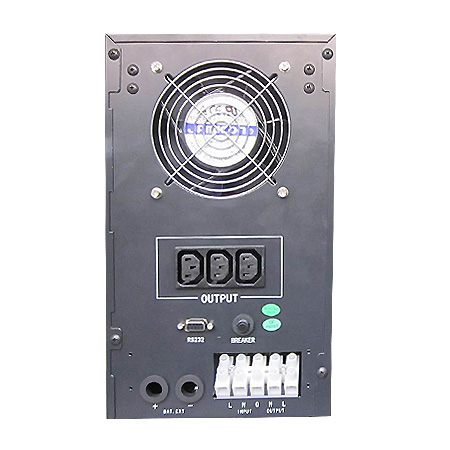

Smart RS232 communication port .
Advanced performance due to the CPU control.
Wide range of power input and accurate output AVR.
Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.

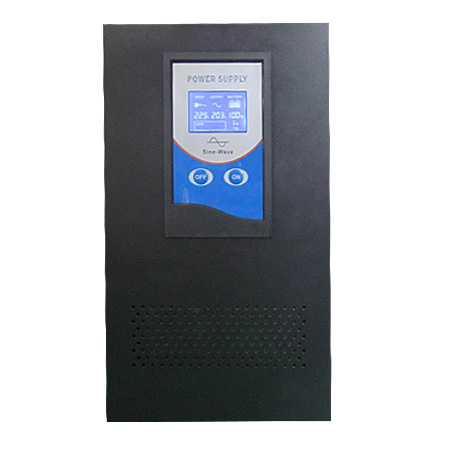

LED/LCD display (optional).
Adapt to various of power net well ,compatible with generator.
UPS start automatically when the main power recover(optional).
Intelligent battery management.

Specifications:

MODEL	EW2150 1KM/S	EW2150 2KM/S	EW2150 3KM/S	EW2150 5KS	EW2150 6KS
CAPACITY	1KVA /700W	2KVA /1400W	3KVA /2100W	5KVA /3500W	6KVA /4200W
INPUT
Voltage	100/110/120/127/220/230(± 25%) VAC
Voltage Range	81-145 VAC / 162-290 VAC
Frequency Range	60/50 ± 10% Hz (auto sensing)
OUTPUT
AC Voltage Regulation	±10%
Frequency Range	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Sine Wave
BATTERY
Battery Type & Number	12 V/7 AH x 2	12 V/12 AH x 2	12 V/12 AH x 2	12 V/17 AH x 4	12 V/17 AH x 4
Recharge Current	Long back up model:max 25A Standard model:max 3A
INDICATORS
LCD/LED	Optional
PROTECTION
Overload	shut dowm if overload exceeds 120% /normal value for 30 seconds
Short circuit	Cut off immediately or input circuit breaker protection
ALARM
Battery back-up	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Audible alarm
Fault	Continuously sounding
PHYSICAL
M Dimension, D X W X H (mm)	375 x 130 x 190	452192338(2kva-3kva);500260455(5kva-6kva)
M Net Weight (kgs)	12.0	21	25	29.5	33.7
S Dimension, D X W X H (mm)	375 x 130 x 190	452192338
S Net Weight (kgs)	9.6	17.0	23.7	27	37.3
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
