Picture of MRX  WIFI Amlogic S905 Quad smart tv box Support 3D 4K&H.265 decording 16GB ROM 2GB RAM Aluminum Housing Dual Band  eMMC tv box

MRX WIFI Amlogic S905 Quad smart tv box Support 3D 4K&H.265 decording 16GB ROM 2GB RAM Aluminum Housing Dual Band eMMC tv box

SKU: FS996140
MRX WIFI Amlogic S905 Quad smart tv box Support 3D 4K&H.265 decording 16GB ROM 2GB RAM Aluminum Housing Dual Band eMMC tv box
Reproduction is welcome and allowed for free circulation only.


Housing Dual Band WIFI Amlogic S905 Quad Core Smart tv box eMMC tv box

tem Config.

CPU

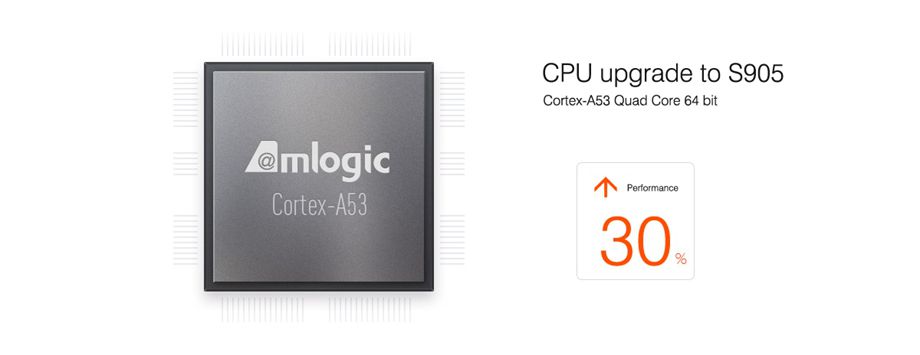

64bit Amlogic S905 Quad Core ARM Cortex A53 up to @2GHz

GPU

Penta core ARM Mali-450 GPU up to 750MHz

RAM

2GB DDR3 DDRIII, 1GB Optional

ROM

Onboard eMMC Flash 8GB

Expand Memory

Micro SD Card (Maximum support 32GB)

Media

Video

H.265 HEVC [email protected] up to 4Kx2K@60fps
H.264 AVC [email protected] up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 5.1 down-mixing
Built-in SPDIF/IEC958 and PCM serial digital audio input/outpu

Image HD JPEG、BMP、GIF、PNG、TIF

Communication

Ethernet

10/100M/1000M LAN

WIFI

IEEE 802.11b/g/n

AP6330 WiFi chip
IEEE 802.11a/b/g/n, WiFi compliant
2.400 GHz ~ 5.8 GHz

Sensor/Motor

IR Sensor

1 IR

Indicator

Power LED

1 power LED with two - color

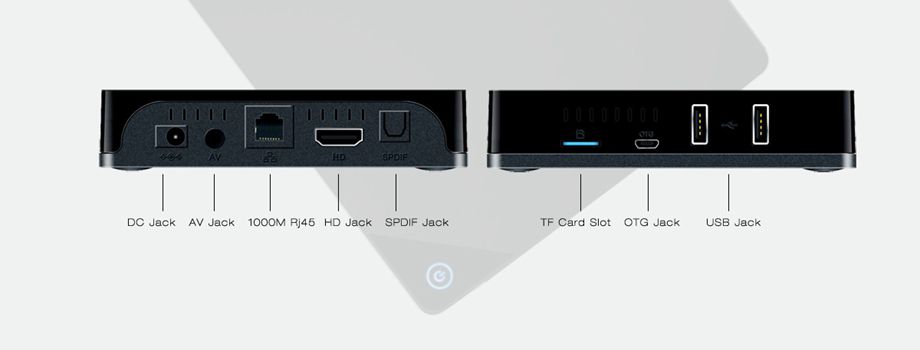

Button & Ports

Button

1 Power Button

1 Update Button(via one pin hole)

USB2.0

2 Standard USB

1 Micro USB with OTG

DC-in

1 DC in Jack

HDMI

HDMI 2.0

SPDIF

1 S/SPDIF (2CH,  5.1CH)

RJ45

1 RJ45

TF Card Slot

1 Micro SD card slot

AV

1 AV Port

Software Config.

OS

Google Android 5.1 Lollipop

Accessories HDMI Cable *1
IR Remote *1
User Manual *1
Package Box *1
Power adapter *1

Size

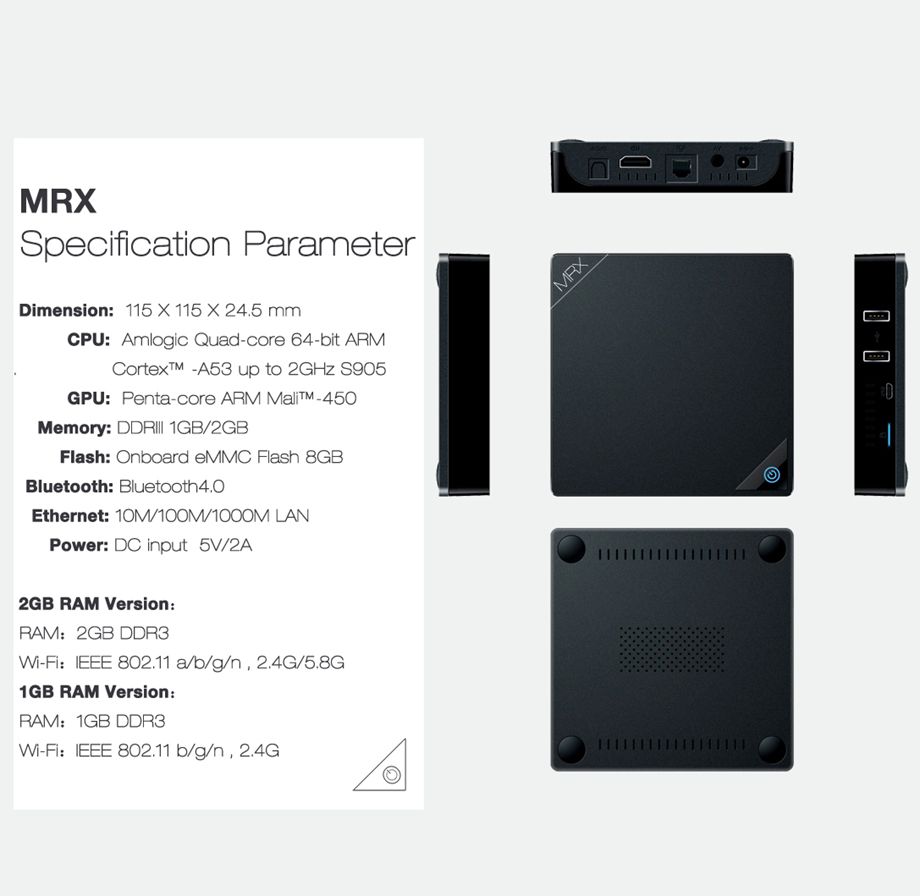

TV Box size: 11.4*114*2.5 cm
Packaging:  15.5*8.3*12.5 cm
