SOLAR PANEL SOLAR BATTERY 100W 12V REGULATOR

Description

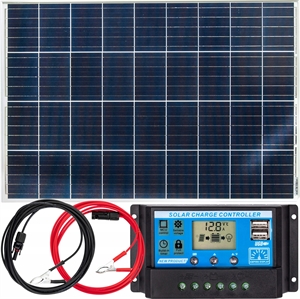

READY PHOTOVOLTAIC KIT
WITH TWILIGHT SENSOR FUNCTION
100W PANEL
VOLTAGE REGULATOR 10A
CONNECTION CABLES
INSTRUCTIONS FOR CONNECTING THE SET

KIT CONTENTS:
100W VOLT POLYMORPHIC PHOTOVOLTAIC PANEL
Dimensions: 1016 x 670 x 30mm
SOLAR PANEL SOLAR BATTERY 100W 12V REGULATOR Cable thickness 4 mm

THE SET INCLUDES THE CABLING SET:
90 cm long cables coming from the panel, terminated with MC4 connectors

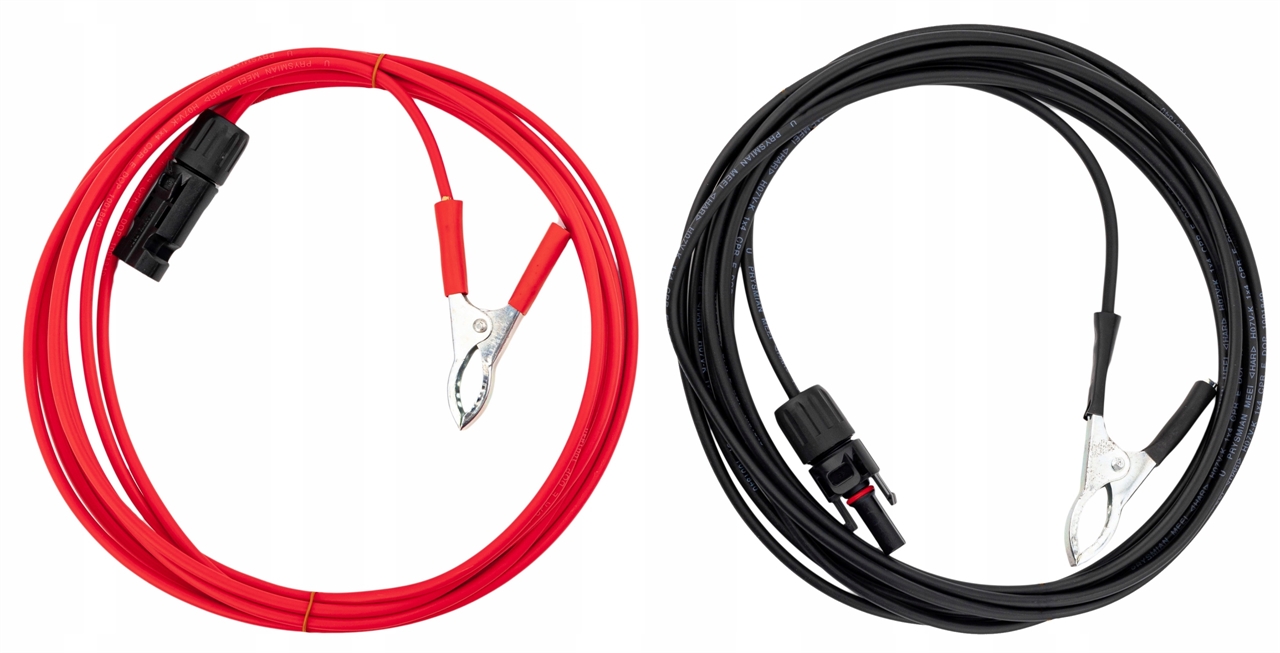

additional cables with a length of 4 meters, terminated with MC4 connectors and crocodile clips on the other side

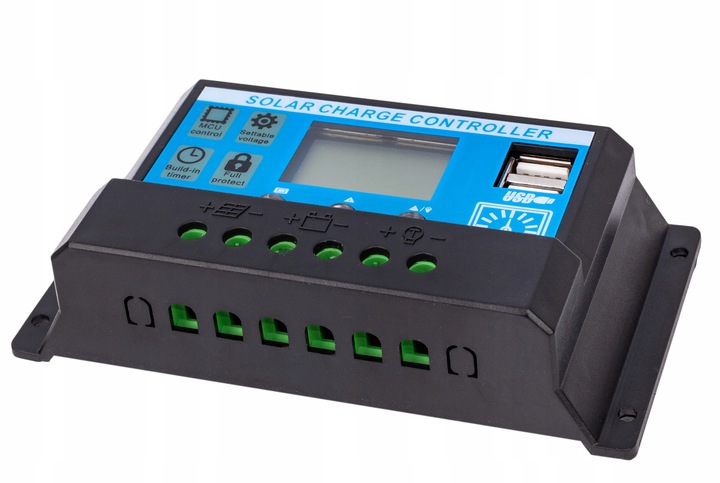

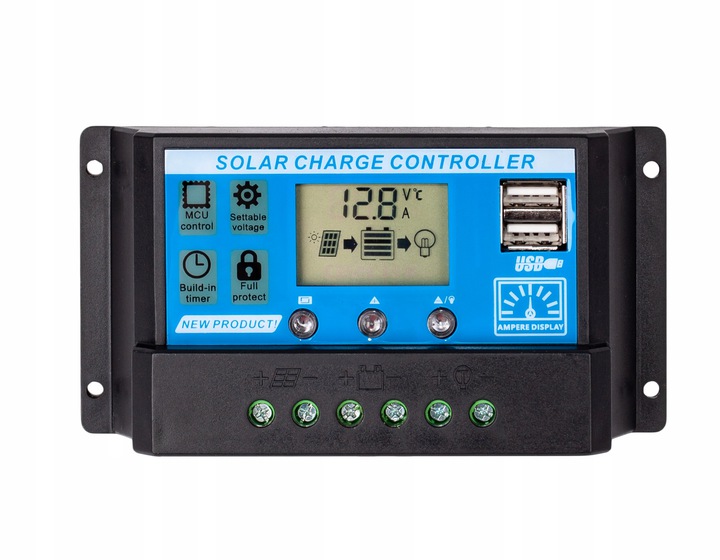

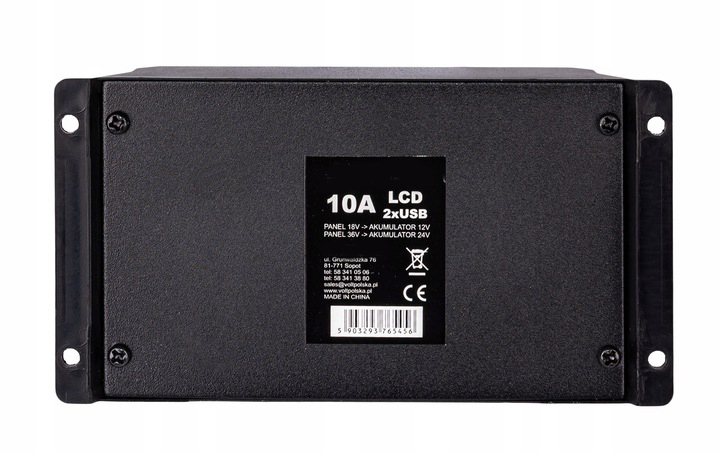

VOLTAGE REGULATOR 10A 12 / 24V WITH TWILIGHT FUNCTION AND 2x USB

The controller has a programmable twilight sensor function.
It is possible to turn on the connected receiver after sunset for a specific number of hours.
In addition, the regulator may be expanded with additional panels in the future, thanks to which we can obtain more electricity.
The controller charges the batteries with the PWM method. It modulates the voltage range from 0 to 100%, which allows for quick and stable battery charging regardless of the weather and the condition of the solar system.
DOUBLE USB

Controller settings:
Turning on / off receivers.
Twilight switch (turning on receivers for a given time after sunset).
Programmable up to 15h.

Regulator security:
Solar battery short circuit.
Load side overload.
Reverse battery polarity.
Overheating protection.
We also offer the possibility of building a photovoltaic set at the customer's request.

Technical parameters of the controller:
Discharge protection: 11.1V / 22.2V
Load restoration point: 12.5V / 25V
Maximum input voltage (from panels): 48V
Waterproof class: IP30
Max. charging current (panel current): 10A
Max. load current: 10A
Working voltage: 12V 24V DC
Own consumption: <6mA
Working temperature: -20 ℃ to +60 ℃
Dimensions: 97 x 66 x 25mm (L / W / H)
2x USB
Charging compensation due to temperature: -30.0mV / 1 deg. C / 2V

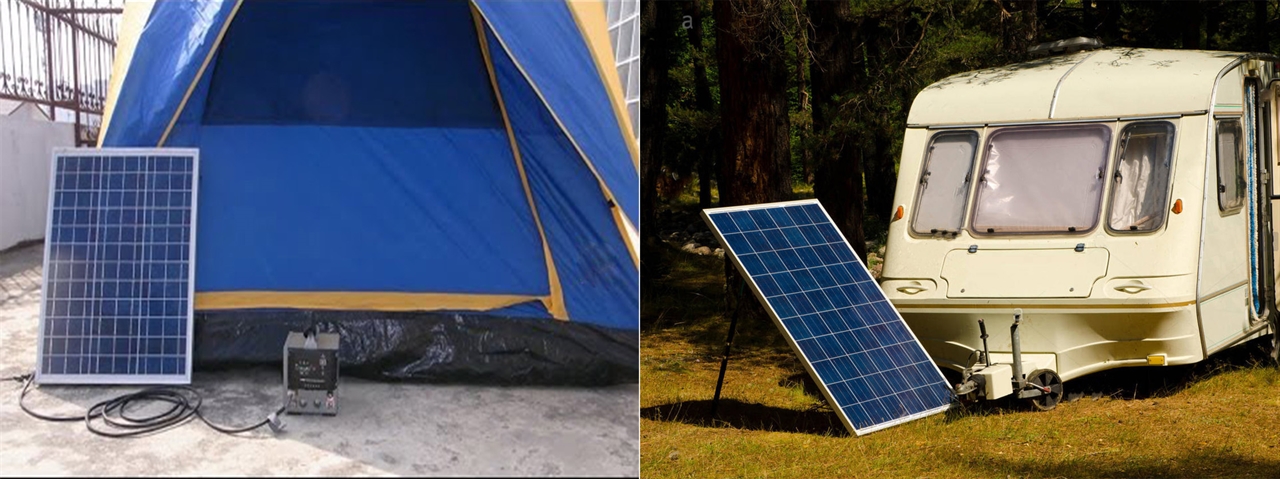

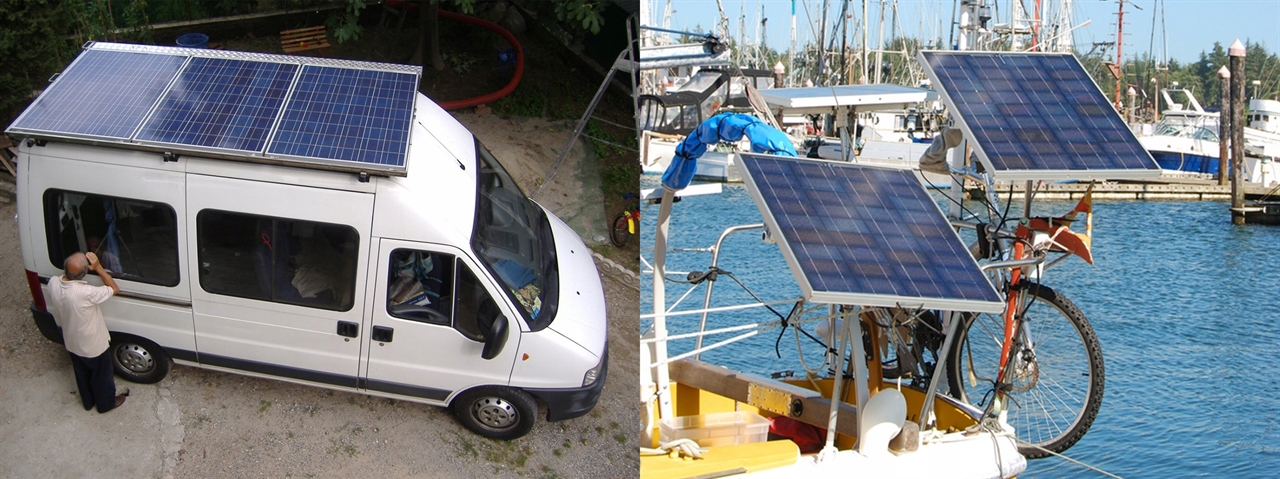

EXAMPLES OF APPLICATION OF THE SOLAR SET:
APPROXIMATE CHARGING TIME OF BATTERIES
The table opposite presents the time needed to charge the batteries available on the market depending on the power of the photovoltaic system.

The 100W solar battery will easily charge the 33 Ah battery in less than 6 hours from full discharge !!!
