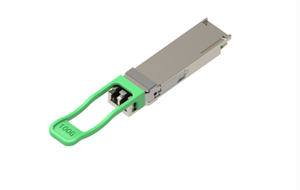

Qsfp-100g-CWDM4-500 02312ujn Optical Modules for Hw 100G QSFP28 CWDM4
100G QSFP28 CWDM4
RTXM420-431
RTXM420-431 100G QSFP28 CWDM4 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP MSA and CWDM4 MSA.The optical transceiver is RoHS compliant.
Key Features
Hot-pluggable QSFP28 form factor
Supports 103.125Gb/s aggregate bit rate
Power dissipation <3.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 2km on single Mode Fiber (SMF)
Aligned with 100G CWDM4 MSA
4x25G NRZ DFB-based CWDM transmitter
4x25G NRZ retimed 100GAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
RoHS compliant

Application
DATAC

Specifications
Data Rate
103.125Gb/s
Distance
2km
Case Temperature
0~70℃
Voltage Supply
3.3V
Transmitter
DFB
Receiver
PIN
Wavelength
CWDM
Connector
Duplex LC
Power consumption（Max）
3.5W
