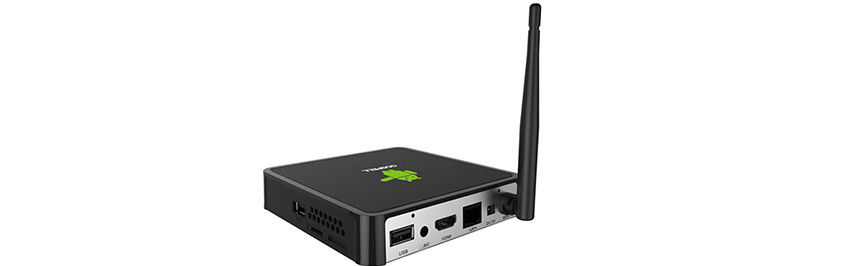

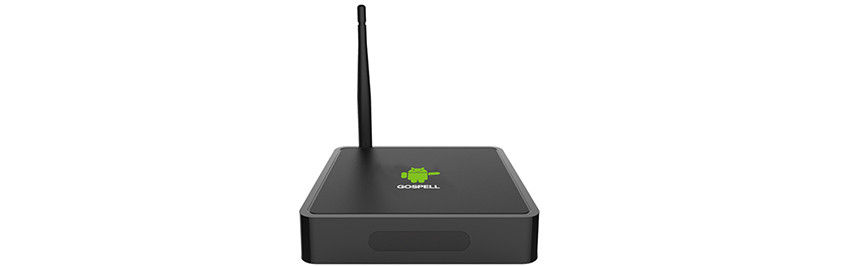

Android DVB-C DVB-OTT set top TV BOX


Main Features:

Supports Android 4.2.2 OS
Supports Google browser inside,HTML 5 and Flash 10.1-10.3 support
Supports on-line shopping and Banking portal
Social network portal( Fance Book,Twitter,etc )
Supports massive application/game installation,import APK files from usb and market
HDTV / SDTV MPEG-2 / MPEG-4 / H.264 / AVS / Divx decoding
Supports 1080P Full HD video decoding
HDMI 1.4 and AV output that suitable for any TV and display
Supports USB 2.0 and OTA software upgrade
Supports Multimedia MP3, AVI,DAT,MKV,MP4,VOB,WMA(OPTIONAL)
RMVB player
Supports side-by-side / top by button 3D Video playing
Built-in external antenna for stable internet rexeiving

Technical specification:

Chipset and Memory:
CPU Speed: Hi3718C ARM Cortex A9 Dual core 1.5G Hz
Flash: 32Gbit
RAM: DDR3- 8Gbit

Power:
Input power: DC5V,2A
Maximum power consumption: 9W
Standby power: ≤ 1W
Interface:


Video output: RCA(Mini) x1,
HDMI: x 1
Digital Audio output(S/PDIF): COAXIAL x1,
USB2.0 port: x1
ETH: Ethernet x1
Expansion port interface: TF x1
Antenna: 3dB gain, omnidirectional antenna x1
Video Decoding

Compliant with: MPEG-4 part10 /MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@Level3 10Mbps
MPEG-2 Main Profile@ Main Level 15 Mbps
H.264 MP@L3(10Mbps),H.264 [email protected] 30Mbps
Aspect ratio: 4:3/16:9
Video format: PAL / NTSC / SECAM
Resolution: 480i/480p/576i/576p/720p/1080i/1080p
Audio Decoding


Compliant with: MPEG-1/2/3, HE AAC(Optional),AC3(Optional)

3D Video playing
Video format: side-by-side / top-by-button

WIFI standards
Compliant with: 802.11 b/g/n
