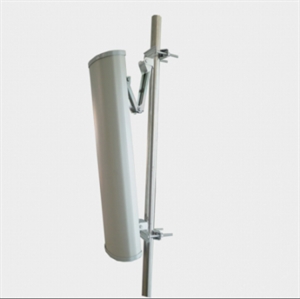

| Product Name | 698-960/1710-2700MHz single polarization LTE antenna |
| Description | GA-LTE-698--2700-11/14: The LTE panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof. |
| Electric Specification | |
| Model NO | GA-LTE-698-2700-11/14 |
| Frequency Range-MHz | 698-960/1710-2700 |
| BandwidthMHz | 262/990 |
| Gain-dBi | 11/14 |
| HorizontalBear width° | 65/70 |
| VerticalBear width° | 35/18 |
| F/B Ratio | 17 |
| VSWR | ≤1.8 |
| InputImpedance -Ω | 50 |
| Polarization | Vertical |
| MaximumPower -W | 100 |
| Connector | N |
| Mechanical Specifications | |
| Dimensions-mm | 1000*289*132 |
