Image de 300M 11N High-Power Adapters

300M 11N High-Power Adapters

SKU: FS00040024
300M 11N High-Power Adapters
Reproduction is welcome and allowed for free circulation only.

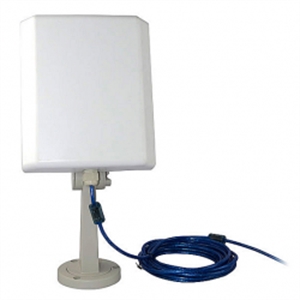

The Blueway highpower wireless usb adapters is comply with IEEE 802.11g and IEEE 802.11b standards, 300Mbps transmission rate Wireless Ethernet USB Adapter. The highest power can be 1000mW, can receive wireless signal from more than 1000 meters place.

It is with USB 2.0 interface, simple Configuration and monitoring on Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X; the use of external SMA Connector detachable antenna, users can replace the antenna on demand to obtain a better signal.

Description

Chipset: Ralink3072 ( 1000mW)

Up to 300Mbps high data-rate and 1000mW high output power

Can be Hot Swap

Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES)

Provides two methods of operation: Infrastructure and AD-Hoc

Supports drivers for Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X

Support outdoor used

Specifications

Software Specification

IEEE 802.11n,IEEE 802.11g, IEEE 802.11b

Wireless Speed

11n: Up to 300Mbps

11g: Up to 54Mbps

11b: Up to 11Mbps

Frequency Range

2.4-2.4835GHz

Wireless Transmit Power

40dBm(MAX EIRP)

Modulation Type

OFDM/CCK/16-QAM/64-QAM

Receiver Sensitivity

(without Standards antenna)

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Work Mode

Ad-Hoc

Infrastructure

Wireless Security

64/128 bits WEP

WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Support Operating System

Windows 2000/XP/Vista/Linux/ Win 7

Hardware Specification

Interface

USB2.0 Hi-Speed connector

Operating Temperature

0oC~40oC (32oF~104oF)

Storage Temperature

-40oC~70oC (-40oF~158oF)

Relative Humidity

10% ~ 90%, non condensation

Storage Humidity

5%~90% non-condensing

Dimensions

Unit size: 25.8*16.8*8.5cm ( L*W*H)
