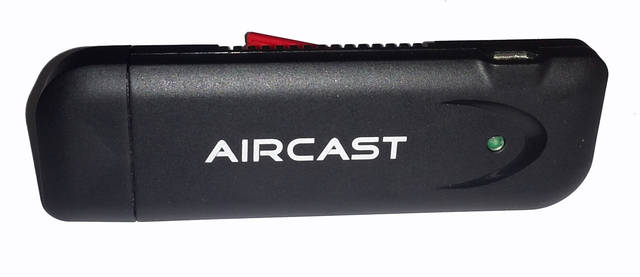

Push miracast Po airplay DLNA external antenna signal King
This document helps user to understand how to use RK2928 wireless HDMI dongle and what kind of devices they need to work with the dongle. Basically, RK2928 wireless HDMI dongle have implemented three features, Miracast (WiFi Display or WFD), DLNA and Airplay which are running on separate function mode, or rather, two different WIFI working mode.
CPU RK2928
Main Frequency Cortex-A9，Up to 1.2GHz
Inner memory 512M DDR3
Operating system linux
WiFi 8188
Interface definitions and specifications
USB USB HOST 2.0
HDMI Connecting high-definition TV, the output audio and video signals.
Voltage parameters 5V-1AAppearance description
Display Through the HDMI output display
Product Dimension L×W×H(mm) 83mm*29mm*10mm
Miracast is a peer-to-peer wireless screencast standard formed via Wi-Fi Direct connections in a manner similar to Bluetooth. It enables wireless or wired delivery of compressed standard or high-definition video to or from desktops, tablets, mobile phones, and other devices. Both the sending and receiving devices must be Miracast certified for the technology to work. However, to stream music and movies to a non-certified device there will be Miracast adapters available that plug into HDMI or USB ports. Miracast allows a portable device or computer to send, securely, up to 1080p HD video and 5.1 surround sound (AAC and AC3 are optional codecs, mandated codec is linear pulse-code modulation — 16 bits 48 kHz 2 channels).However, it works only over Wi-Fi and cannot be used to stream to a router access point.It was created by the Wi-Fi Alliance and billed as an open alternative to Apple's AirPlay Mirroring. It allows users to, for example, echo display from a phone or tablet made by Company A onto a TV made by Company B, share a laptop screen with the conference room projector in real-time, and watch live programs from a home cable box on a tablet.
/1v.jpg)
/2v.jpg)
/3v.jpg)
/4v.jpg)
/5v.jpg)
/6v.jpg)
/7v.jpg)
/8vv.jpg)
/9v.jpg)
/10v.jpg)
/11v.jpg)
