Image de 1080P full HDMI extender support USB3.0 input for CAT-5E and CAT 6

1080P full HDMI extender support USB3.0 input for CAT-5E and CAT 6

SKU: FS996950
1080P full HDMI extender support USB3.0 input for CAT-5E and CAT 6
Reproduction is welcome and allowed for free circulation only.


1080P full HDMI extender support USB3.0 input for CAT-5E and CAT 6

Specification:


Signal input /output
Input video signal:0.5-1.0 volts P-P
Input DDC signal:5 volts p-p (TTL)
Maximum signal link range:1080p
Output video:HDMI 1.3B
Operating Frequency:50HZ/60HZ
Maximum transmission distance:60m/1080p
Video amplifier bandwidth:1.65Gbps/165MHz
Video format:1080p/1080i/720p/720i/576i/480i
Interlaced(50&60HZ):480i,576i,1080i
Progressive(50&60HZ):480P.576P,720P,1080P
Environmental
Operating temperature:0~70℃
Operating humidity:10% ~85%RH (no condensation)
Storage temperature:-10~80℃
Storage humidity:5%~90%RH (no condensation)

Power requirement
External power supply:5V DC 1A
Power consumption(max):1w
Regulatory approvals
Converter unit FCC,CE
Power supplY:FCC,CE
Accessories:adapter:5V DC 1A
AC power adapter:US standard,UK standard and so on

Product function:

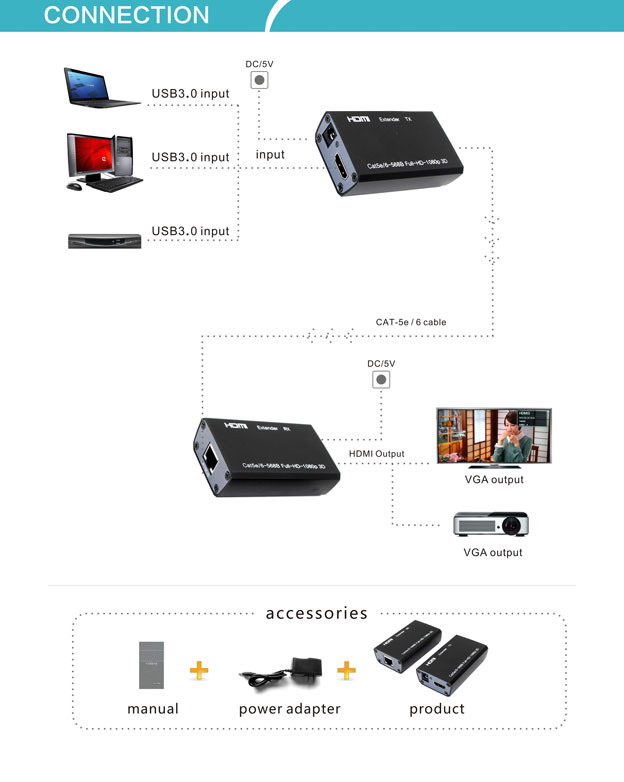

extend 1080P full HD HDMI signal to 60 meters through a CAT-5E/6 cable
using CAT-5E/6 cable instead of HDMI cable to acchieve long distance transmission
Support IEEE-568B standard,support HDCP,HDMI1.3B
Compact and lightweight,cute,quick installation,easy to achieve high definition HDMI cabling

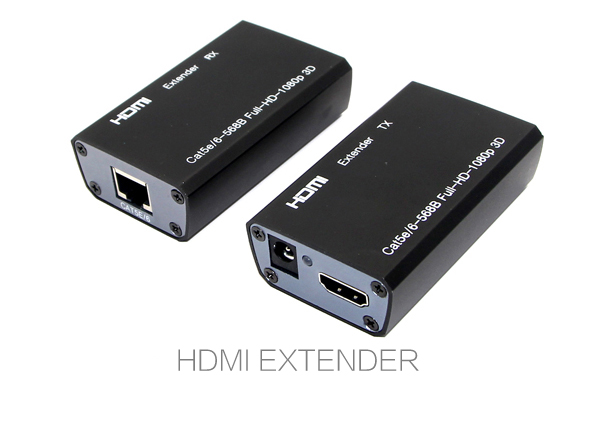

each set contains a transmitter and a receiver
support 1080p resolution,1.65 GBPS signal transmission speed
CAT-5E/6 has more flexibility and convenience when wiring construction
support audio formats:DTS- HD/Dolby true HD/LPCM7.1/DTS/Dolby-AC3/DSD
support converting HDMI signal to DVI signals
LED indicator:associated LED lights will illuminate when the power or extenders works.
