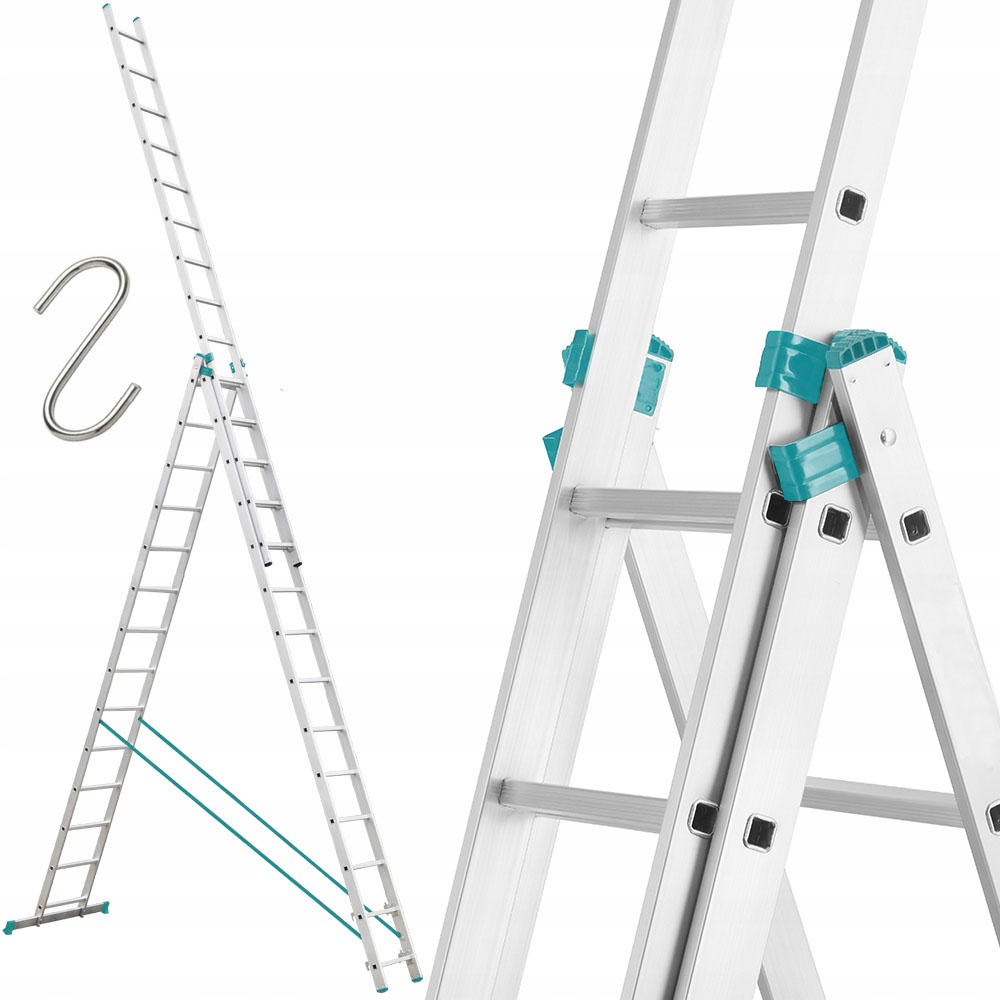

Ladder Aluminum 3x14 Strong 10.90m

Description
3x14 professional universal ladder. The longest on the market - working height up to 9.55m. A hook for each ladder is FREE!
LADDER aluminum 3x14 HIGHER strong 10.90m
The ladder has a very durable and rigid structure. It is suitable for both home and professional use. High-quality, reinforced, thick-walled aluminum profiles, components and materials used in the ladder guarantee its highest quality, safety and extraordinary durability. The ladder is characterized by excellent technical parameters, i.e. working range - 9.55 m, total length - 9.00 m, wall thickness in the aluminum profiles used - 1.70 mm (± 0.1 mm).

Technical data
ladder model: 3x14
use as a 3-in-1 ladder
number of rungs: 3 elements x 14 rungs
maximum working height: 9.55m
folded length (transport): 3.99m
transport dimensions: 470 x 200 x 399mm
total weight: 25.60 kg
side profile: 80 x 20mm
wall thickness: 1.70mm (± 0.1mm)
rung cross-section: 28 x 28mm / thickness 1.60mm
profiled, non-slip rungs
wide stabilizer with non-slip feet
strong belts securing the appropriate spacing
steel, galvanized and painted guides

Technical parameters
Below is a diagram showing the various possibilities of using the ladder (various settings). The given lengths and operating ranges are the maximum values for this ladder model. It should be remembered that the height can be adjusted every 25 cm (from the rung to the ladder rung), thus adjusting it to comfortable and safe work.

1. The 3-element universal ladder is the most universal solution on the market.

2. Ladder rails are made of galvanized steel, powder coated green. The guides are strong and durable. Thanks to the properly designed structure of the guides, they are responsible for the correct positioning and sliding of the ladder. They eliminate the possibility of making a mistake in the correct operation of the ladder. The rails are additionally powder coated in green (all additional elements of the ladder are kept in this color, giving the ladder an aesthetic appearance).

3. Special guide pins which are a system for the correct unfolding of the ladder. Pins attached to the side profiles of the ladder, blocking the possibility of incorrect unfolding - they help to find the correct positioning of the ladder. When the elements of the ladder are in the wrong position, setting up the ladder is impossible. In this way, the possibility of incorrect folding of the ladder was excluded. This solution excludes assembly errors and increases the safety of using the ladder.

4. Belts protecting against excessive ladder spacing (guarantee the correct and safe spacing of the ladder). The belts are made of very strong and weather-resistant polypropylene. Fixed to ladder stringers permanently by riveting. The straps are also an additional protection against too dangerous sliding of the ladder in a leaning position. A simple and clever solution.

5. Safety hooks (ratchets) are a system for locking the elements
ladder and securing it against unintentional release. Hooks ensure safe use of the ladder. The ladder uses strong, solid safety hooks made of galvanized steel. By riveting the hooks to the side member several times, safety has been increased to the maximum. The hooks also ensure proper locking of the ladder during transport or storage.

6. Two-component non-slip feet with a layer of real rubber, made of non-slip plastic of high strength and resistance. The feet perform two functions: they protect the side profiles of the ladder against the ingress of dirt and debris and provide protection against ladder slippage. They are very durable and firmly embedded in the ladder stringers. The feet in our ladders are different than all - they have a cradle shape - the best adapting to the ground and are actually non-slip, because the layer in direct contact with the ground is a layer of real non-slip rubber, which works even on the most slippery surfaces (they are the only ones that pass the so-called . "Anti-skid glass test"). This is a huge difference in quality from a dozen or so times cheaper plastic or "rubberized" feet with alleged anti-slip properties.

7. Rectangular side profile 80x20mm with a thickness of 1.70mm (± 0.1mm), i.e. ladder stringers are the main material of the ladder. The use of appropriate cross-sections of profiles with an appropriate wall thickness generally determines the quality of the ladder and its stiffness (bendability during operation). What profi is used has a large impact on the price of the product. The ladder uses aluminum profiles with a rectangular cross-section of 80x20mm and a wall thickness of 1.70mm (± 0.1mm) (where the standard is 1.20mm). The use of such profiles allowed for high stability and stiffness of the ladder. Cheaper ladders are built on profiles with a thickness of up to 1.20 mm - which shows the difference in classes. The ladders are made of 6063 aluminum alloy, which, thanks to its properties, is the best material for lightweight and super-durable structures.

8. The special construction of rungs 28x28mm with a thickness of 1.70mm (± 0.1mm) (rounded, no sharp edges, profiled - non-slip) allows for safe and comfortable use. Properly selected size of the rungs allows for optimal grip with the hand. The rungs are fixed in an extremely durable way to the side profiles in the process of automatic pressing and expansion. Our rungs are attached to the stringers in the process of 42-fold pressing and expansion. It is one of the stages of a fully automated production process in one of the most modern factories in Europe. Thanks to the very precise processes of pressing and expanding the rungs - they are permanently connected and finished very aesthetically. The durability of the connections is very important because, when the fastenings are poorly made, the rungs let go and the ladder slowly loses its stiffness during the years of use, making it only fit for replacement.

9. Wide transverse stabilizer as an indispensable structural element of the ladder to protect it against lateral falls. The traverse stabilizer is additionally equipped with two-component non-slip feet made of plastic and a layer of real rubber with real anti-slip properties. The feet have a rocker shape to perfectly match the surface on which they stand. The ladder has a stabilizer with an increased length for increased safety and protection against side falls.

Ladders convenient for transport and storage
Universal 3-element ladders are foldable to a relatively small size. This allows for easy transport or storage of ladders. After folding, the ladder can be stored in the garage or utility room. A good way to store them is to hang the ladders on the wall on special hooks - it saves a lot of space.

Well thought-out design - convenient to use and store.
The ladder, thanks to its well-thought-out design, is convenient not only to use, but also to store. The metal hinges used at the top of the ladder allow the ladder to be folded practically to a flat position, which saves a lot of space needed to store the ladder. The width of the ladder after folding is - 40 cm. An important element is the use of special fasteners - which are described in more detail below.

A super strong, durable, stable and versatile ladder.
The ladder is a professional tool. The ladder is very strong due to its design. You can choose her as a professional storage board that will be perfect for everyday use. The ladder is also perfect as a tool on the construction site. A very strong structure works well in difficult construction conditions, where really good and professional equipment counts. The ladder is ideal for painting work thanks to the wide steps that make it easier to get up and down the ladder.

Safe non-slip endings - feet!
Why is proper and non-slip ending so important? They are decisive for safety to a large extent. When working, ascending or descending, the storage ladder must be stationary to indicate that it is safe. This is why the ladders use the highest quality non-slip rubber feet, which perfectly fulfill their role by increasing safety on any surface.

Very strong belts to prevent the ladder from falling apart
The ladders have very strong and durable securing belts. The belts made of polypropylene are riveted to the ladder stringers and constitute the limiters of the ladder spacing. Thanks to the use of a strong, resistant to mechanical damage material - the belts are an excellent protection.

Fluted aluminum steps for safe ascent and descent
The free-standing ladder is equipped with 12 cm deep, grooved non-slip steps for safe ascent and descent. The specially designed shape of the step (without any sharp edges) significantly increases the level of safety and comfort of use. It is worth adding that the first stage is strengthened four times, because it is the most used stage and it is on it that the greatest pressure of the load occurs.
